Reliable LDPE/HDPE Bags for Effective Plastic Waste Management

Customization:	Available
After-sales Service:	Local Service Available
Warranty:	2 Years

i

Basic Information

Model NO.	ACS-PRO
Raw Material	Post-Consumer/Post Industry/in-House Plastic Waste
Screw	Single-Screw
Automation	Automatic / Computerized
Certification	CE, ISO9001:2008, TUV
Application	Film, Filament, Raffia, Foam
Capacity Range	160-1200kg/H
Target Material	PP PE PET ABS PS PC
Final Product	Pellets / Granules

!

Product Description

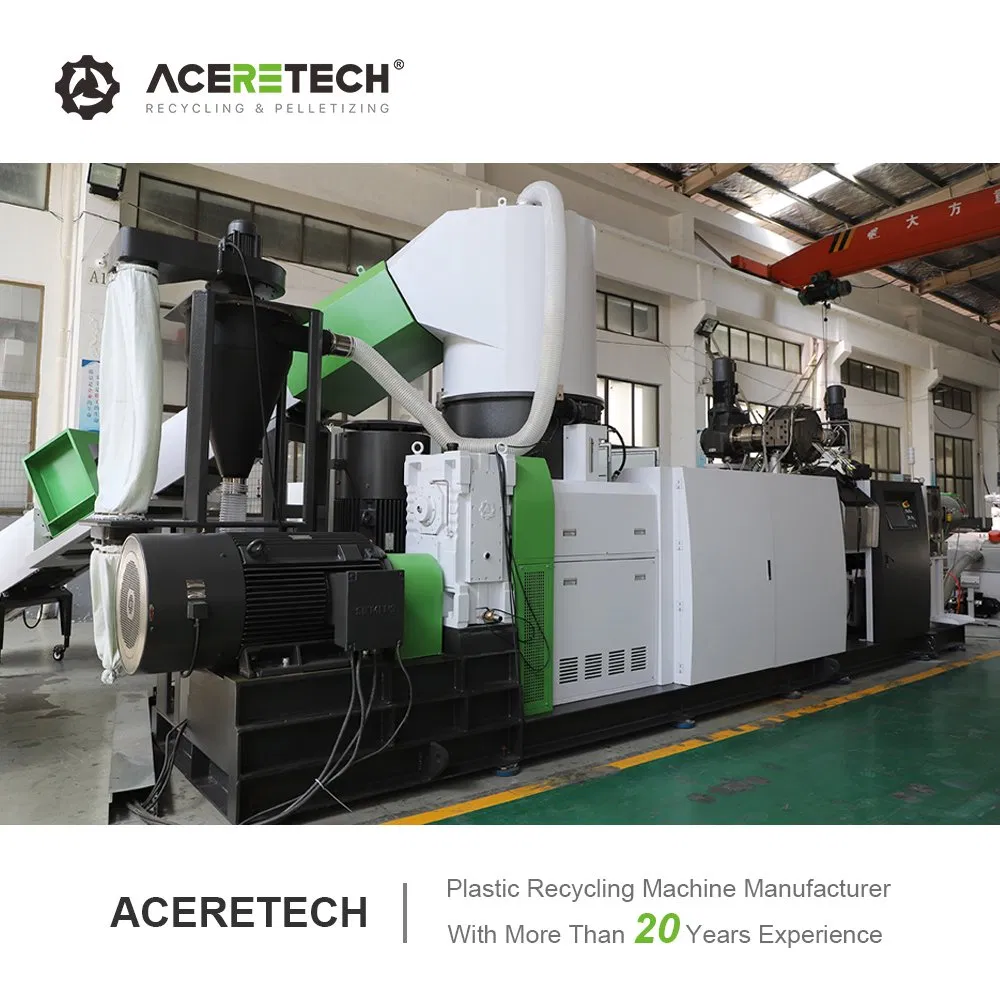

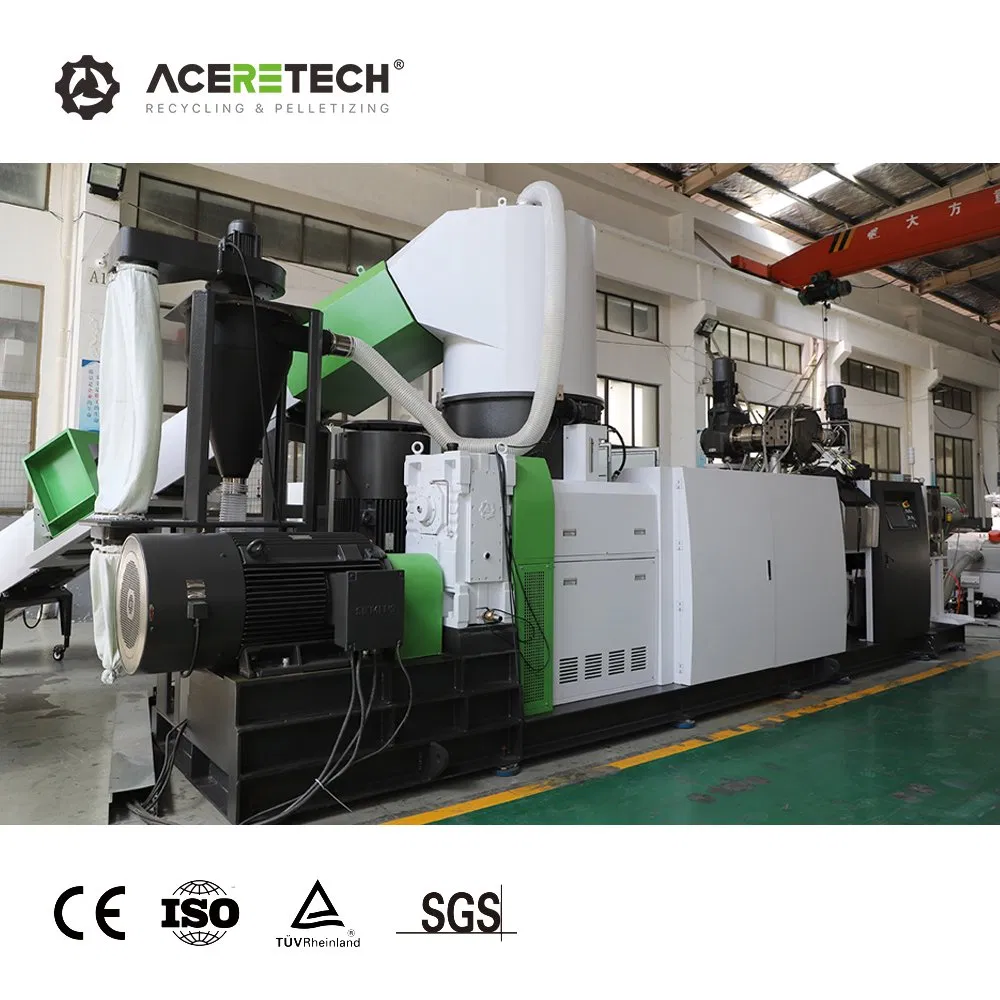

Environmental Protection LDPE/HDPE Bags for Plastic Granulator Machine Recycling Pelletizing

The ACS-Pro is the entirely new standard recycling and pelletizing system with optimized super long L/D ratio, filtering ahead of vacuum degassing. It is specially suited to waste plastics such as high contaminated and heavily printed recycling and pelletizing.

Recyclable Plastics Include:

LLDPE/LDPE/HDPE/PE/EPE film, crushed material, lithium battery film
PP/OPP/BOPP/CPP film, woven bag, non-woven fabric
PA66 fishing net, silk, factory trim, carpet
PET/BOPET bottle flakes, film, waste cloth, foam
EPS/XPS crushed material, cold briquetting foam, hot melt foam
HIPS/PC/ABS home appliance housing, electronic waste

⚙

Technical Specifications

Machine Model	ACS-Pro
Output Range	320kg/h - 2100kg/h

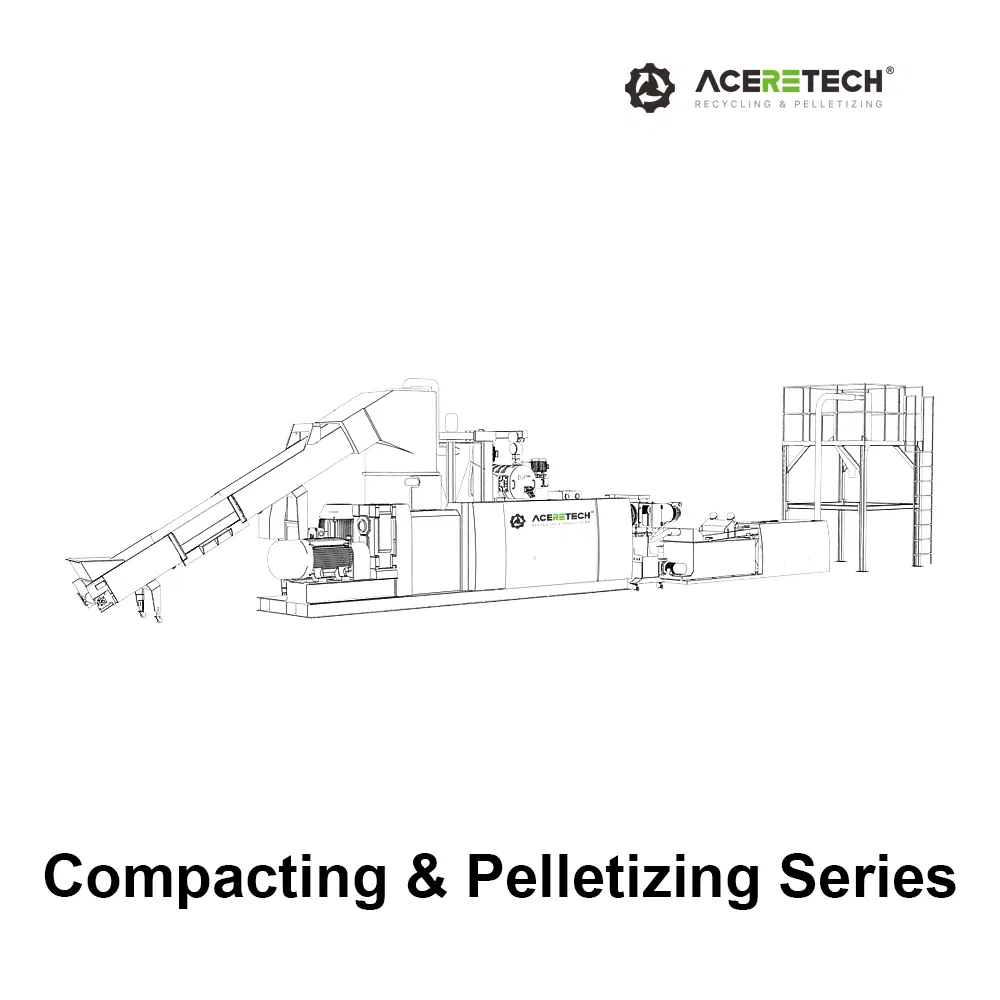

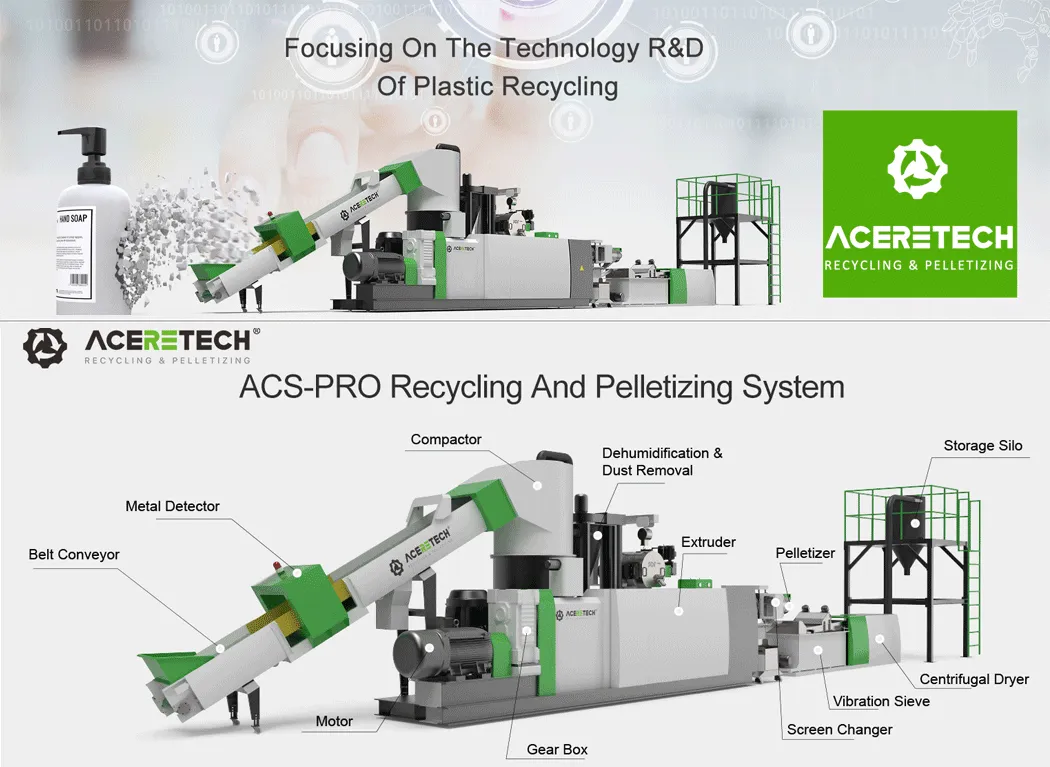

System Composition	Belt Conveyor, Cutting Compactor, Single Screw Extruder, Filtration, Vacuum Degassing, Pelletizer, Cooling Device, Silo
Screw Diameter	100mm - 180mm (Bimetal Material)
L/D of Screw	50 / 1
Pelletizing Type	Water-ring / Water-strands / Under-water Pelletizing
Degassing	Two Double-zone vacuum degassing system

★

Product Showcase

Suitable Materials:

Final Output Pellets:

🔍

Detailed Features

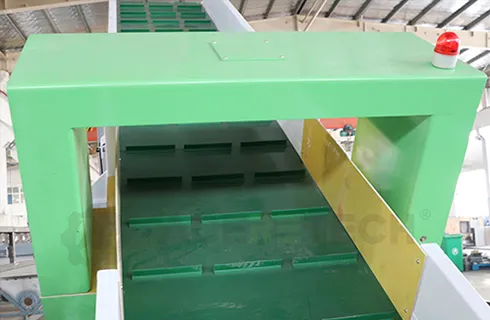

Automatic Feeding Motor drives of conveyor belt and hauling device cooperate with inverter. Feeding speed is fully automatic based on the compactor load. Optional metal detectors can be integrated for safety.

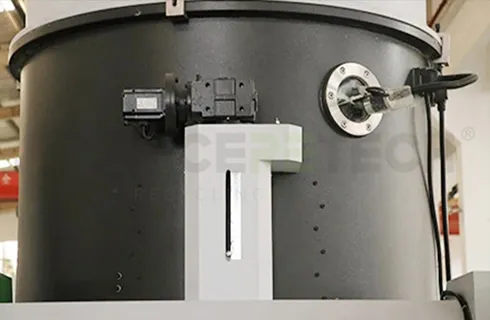

Intelligent Sliding Gate Handles both hard and soft materials. It controls residence time for pre-drying and ensures only dry, clean material enters the barrel via PLC controlled forced feeding.

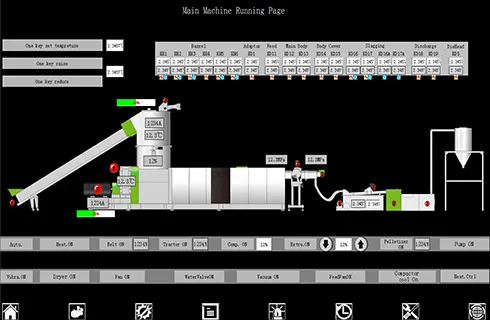

One-Button Control Intelligent interlocked system modules start via "one button only" to prevent manual operation errors. Emergency stop functions protect the entire system during operation.

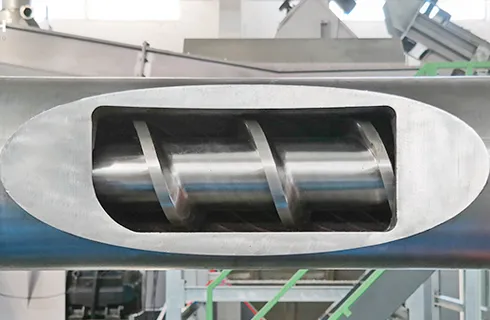

High-Performance Extruder Screw adopts nitrided steel (38CrMoAlA) with CNC processing. Specialized design ensures polyolefin materials melt under lower temperatures and pressure even at high speeds.

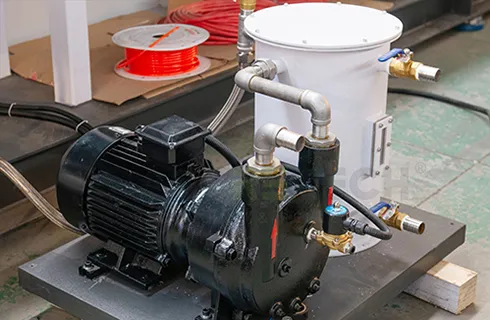

Vacuum Degassing System Removes low molecules and moisture during melting. Consists of a water ring vacuum pump, filtering tank, and pressure gauges to handle heavily printed materials efficiently.

✔

Quality Assurance

Equipped with professional processing equipment for component accuracy.
Strict inspection of each component before assembly.
Master technicians with over 15 years of experience lead assembly.
12-hour full production line testing before shipment.

?

Frequently Asked Questions

What materials can this machine recycle?

The system handles a wide range of plastics including PE, HDPE, LDPE, PP, BOPP, PET, ABS, and even foamed materials like EPS/XPS.

What is the production capacity of the ACS-Pro?

The capacity ranges from 160kg/h to 1200kg/h, depending on the specific model and the type of raw material being processed.

Does the machine handle contaminated materials?

Yes, the ACS-Pro is specifically designed for high contaminated and heavily printed plastic waste with advanced filtering and vacuum degassing systems.

What kind of pelletizing methods are supported?

We offer water-ring pelletizing, water-cooled strands, and underwater pelletizing methods to suit different material requirements.

What after-sales services do you provide?

We provide remote monitoring, installation support, operator training, and free spare parts for a specified period. Engineers can also be sent for on-site commissioning.

How do you ensure machine quality?

Every machine undergoes a minimum 12-hour continuous test run before dispatch, with all components strictly inspected by our quality control team.
