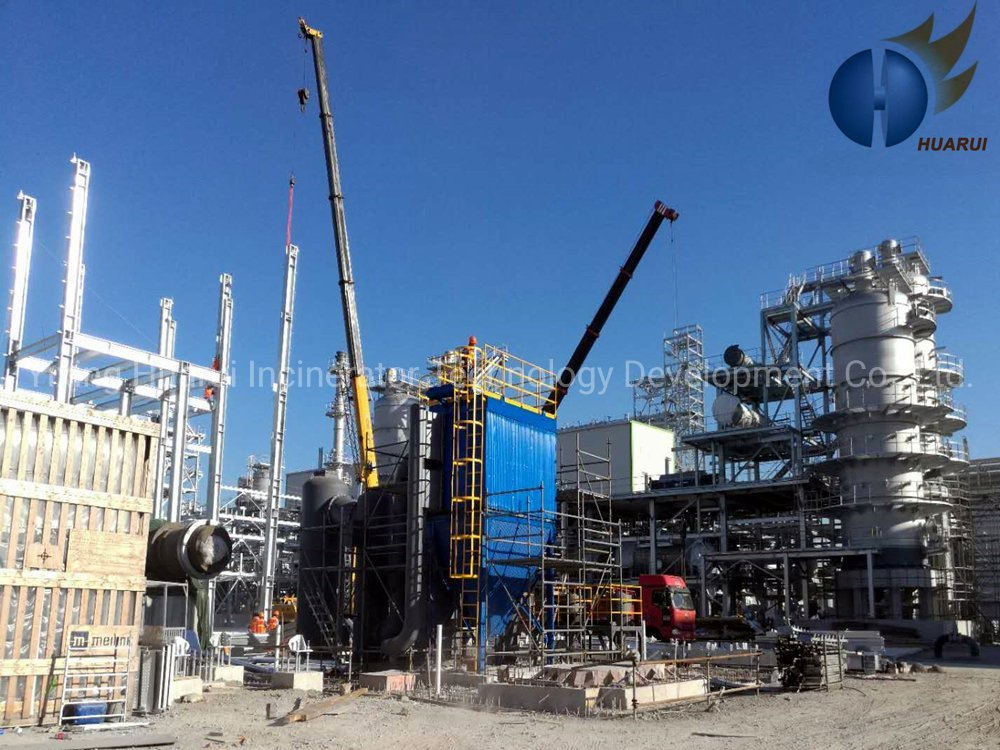

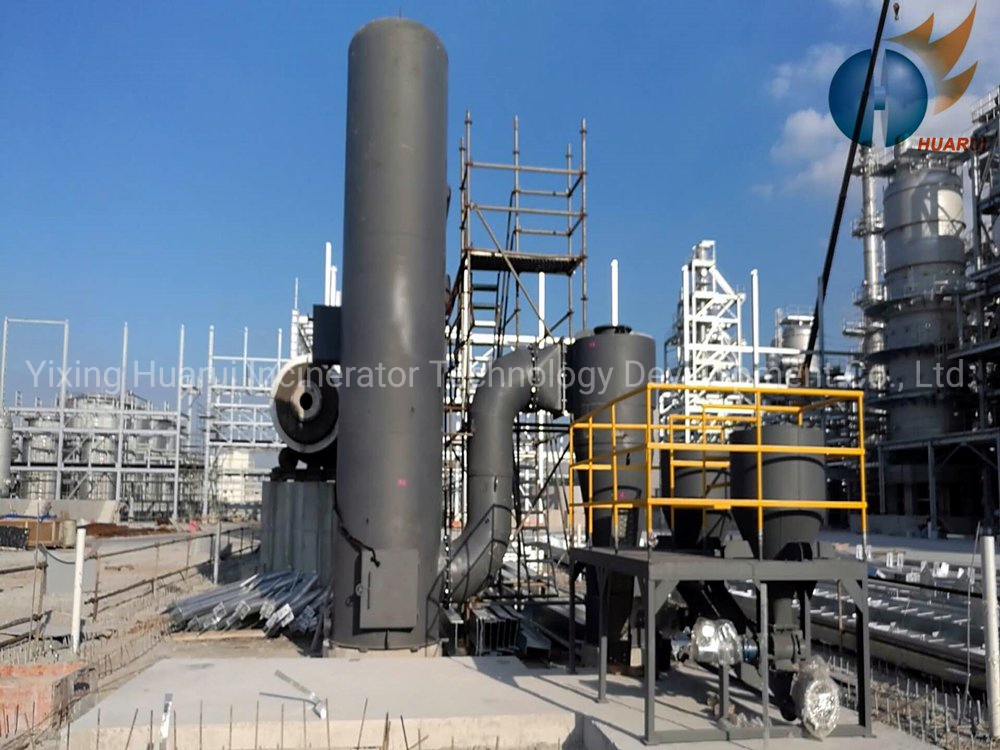

High Quality Biological Waste Gas Incinerator Waste Management

Scope of Application

• Industrial mixed exhaust gas, inflammable exhaust gas, exhaust gas of color paint;
• Exhaust gas which will not break under the high temperature and is not easy to burn, involving poison gas, dangerous explosive gas and so on;

Characteristics

• Multi-grade fire resisting and returning device;
• Explosion controlling device;
• Emergency exhaust device;
• Whirl flux device, adopting PC control;
• Thermal energy could be reclaimed to decrease running cost.

Waste gas treatment capacity: 100 -1000 Nm³/h

Equipment Composition

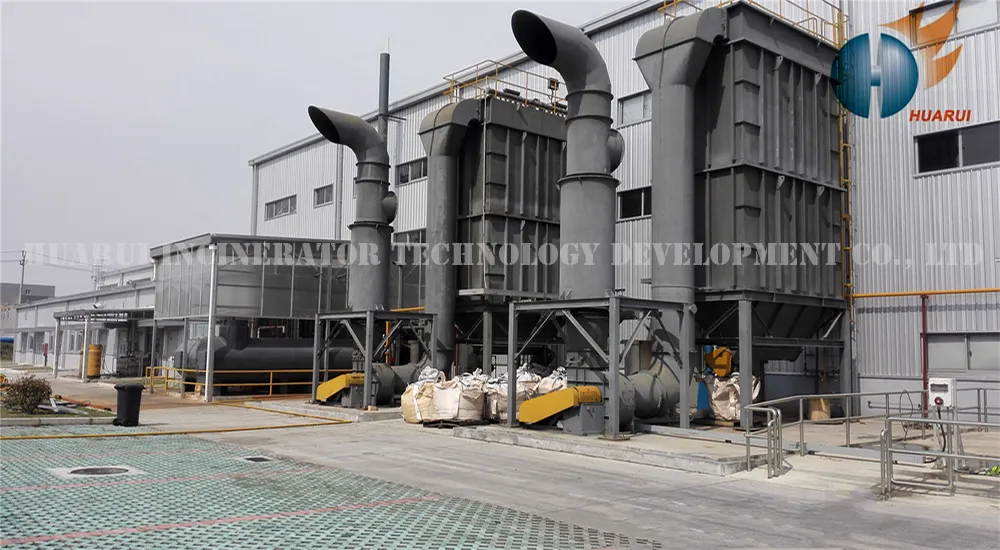

Furnace body, gas injector, liquor atomizer, burner, air blower, electric control system, waste gas surge tank, air preheater, waste heat boiler, cooling air valve, cloth bag dust collector, exhaust fan, chimney, the fuel supply line and control, waste gas conveying control system, waste liquid pipeline system, etc.

Process Flow Description

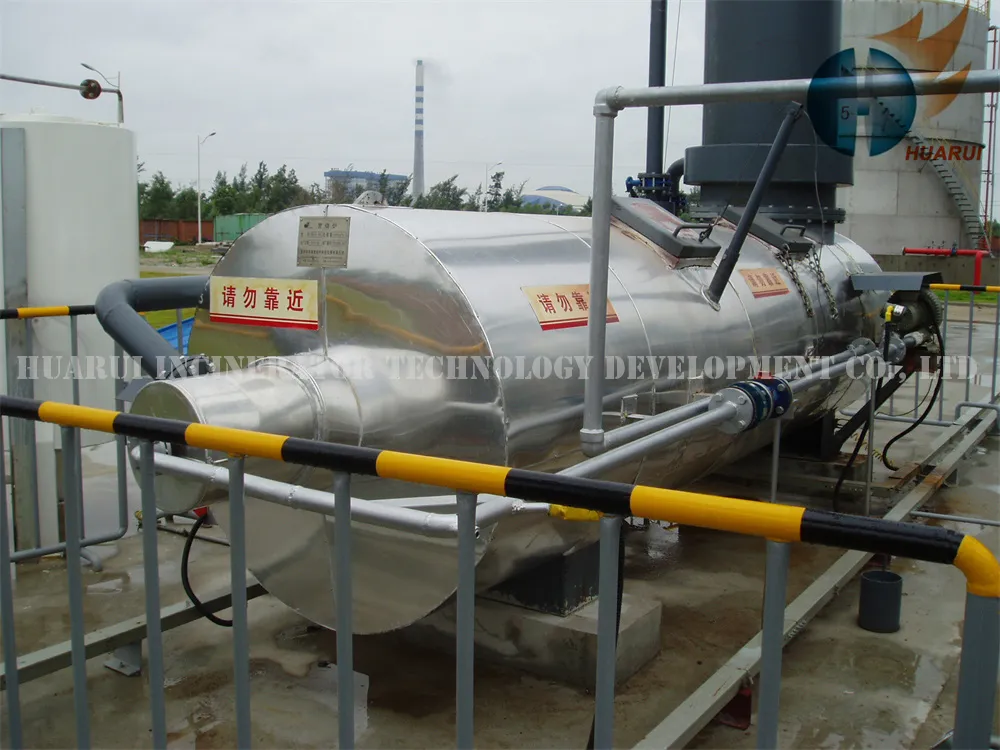

The incinerator is a cylindrical lining refractory equipment. Burner ignition automatic, make furnace temperature increases slowly. Open gas transmission systems and waste liquid pipeline when the temperature reach 800 ºC approximately, exhaust gas and waste liquid join into furnace for burning. The use of automatic temperature control system makes furnace temperature kept on physical complete combustion condition, achieving the effect of non-toxic, harmless, smokeless, odorless and complete combustion. The high temperature smoke goes into the air preheater heating oxygenating air, and then into the waste heat boiler cooling to produce steam for factory use. The cooling flue gas mixed with fresh air from the cooling air valve stabilizes the flue gas temperature below 250 ºC before entering the cloth bag dust collector to collect smoke dust.

Note: This equipment is not suitable for burning sulfur, halogen class and flame retardant material where organic matter concentration is within the explosion limit.
