Innovative Waste Management with High-Performance Rotary Kiln Technology

After-sales Service:	1 Year
Warranty:	1 Year
Condition:	New

Send Inquiry

Product Description

📊

Basic Specifications

Model NO.

HR-X

Certification

ISO

Automation

Automatic

Treatment

Burning

Fuel

Diesel Oil, Natural Gas, Lps

Service Life

10-15 Years

R&D Personnel

More Than 20 People

Voltage

380V/220V

Burning Rate

99.9%

Capacity

300 Sets/Year

Origin

Jiangsu, China

HS Code

8417809090

🌐

Scope of Application

Treatment for dirt mud type and ointment shape waste.
Central treatment for industrial hazardous waste.
Central treatment for medical and clinical waste.

✨

Core Characteristics

Full automatic material filling and ash output system.

Eco-friendly operation: No smoke, no odor, no secondary pollution.

Revolving type body with multiple-phase burning for high efficiency.

High thermal alkali burning rate exceeding 90% with minimal residue.

Continuous feeding capability for waste with high water content.

Advanced automatic control technology for safe and reliable operation.

📈

Performance Index

Waste Type	Combustion Temp (ºC)	Smoke Residence Time (S)	Combustion Efficiency (%)	Removal Rate (%)	Residue Thermal Reduction (%)
Hazardous Waste	≥1100	≥2	≥99.9	≥99.99	<5

Handling Capacity: 50-5000kg/h

⚙️

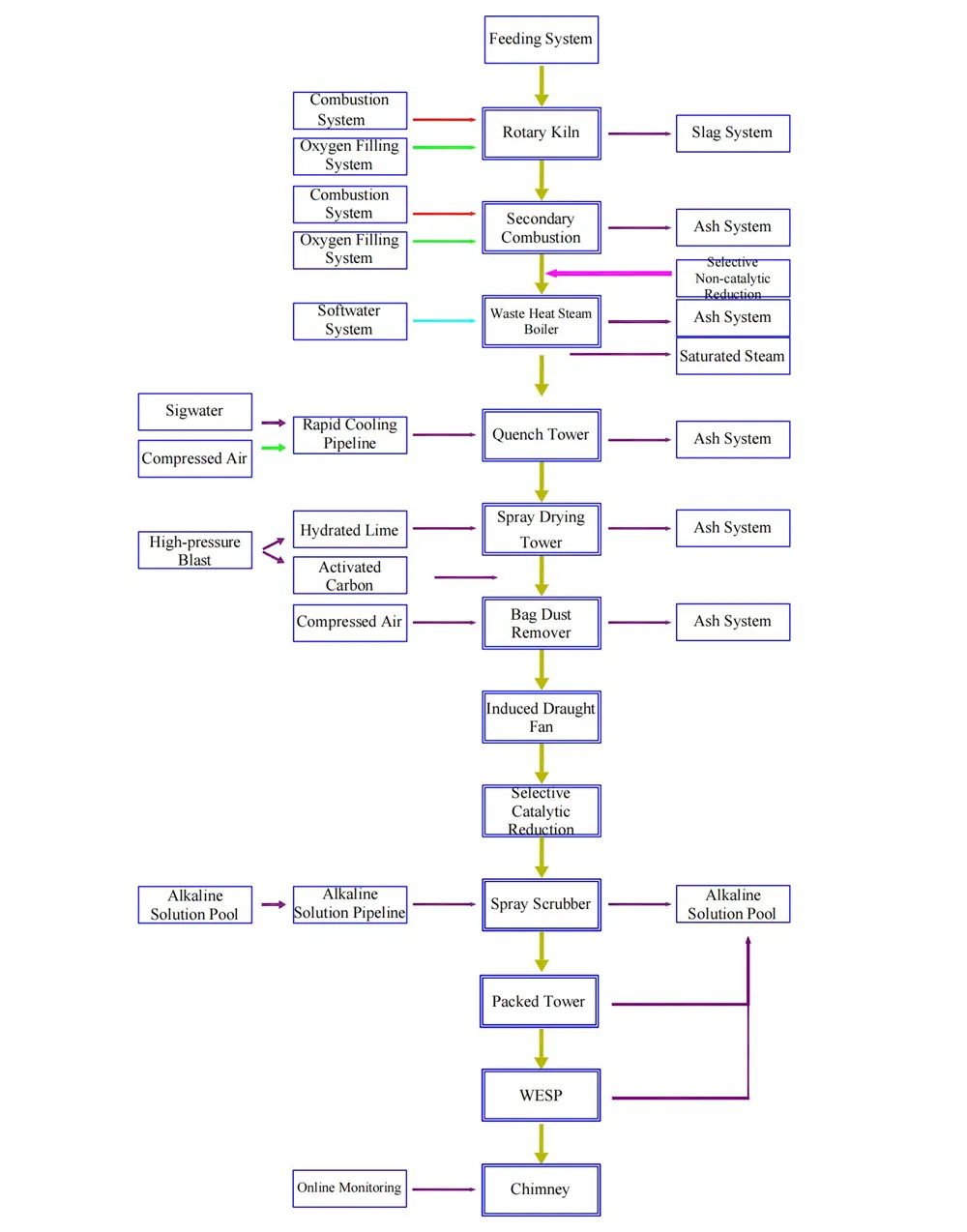

Process Flow Description

Based on the 3T principle (Temperature, Time, Turbine flow), the waste undergoes oxidation, pyrolysis, and combustion. Light diesel oil initiates the process until set temperatures are reached. Tail gas is processed in a multi-hull secondary combustion chamber with gravity dust collectors.

High-temperature energy is recovered via waste heat boilers for factory steam use, and air heat exchangers are utilized for fresh air heating. Finally, the flue gas passes through a dust collector and spray system to meet atmospheric standards before discharge via the exhaust fan.

🛠️

Incinerator Device Components

The system includes: Crusher, frequency conversion feeding motor, high pressure conveying fan, rotary kiln, driving device, secondary chamber, waste heat boiler, air heat exchanger, multi-pipe dust collector, spray tower, exhaust fan, chimney, diesel ignition and combustion system, and automatic control system.

📸

Product Gallery

❓

Frequently Asked Questions

What types of waste can be treated by the HR-X incinerator?

The system is designed for a wide range of materials, including industrial hazardous waste, medical waste, dirt mud, and ointment-shaped waste.

Is the operation environmentally friendly?

Yes, it utilizes a 3T control principle and a secondary combustion chamber to ensure there is no smoke, odor, or secondary public pollution during operation.

What is the combustion efficiency of this equipment?

The combustion efficiency reaches ≥99.9%, with an incineration removal rate of ≥99.99% and a residue thermal reduction rate of less than 5%.

What is the typical service life of the incinerator?

With proper maintenance and operation, the equipment has a designed service life of 10 to 15 years.

What kind of fuel is required for the burner?

The system is versatile and can be configured to use Diesel Oil, Natural Gas, or LPG (Liquid Petroleum Gas).

How is the temperature within the furnace controlled?

The system features an advanced automatic control system that monitors and adjusts temperature in real-time, ensuring safe and efficient operation.
