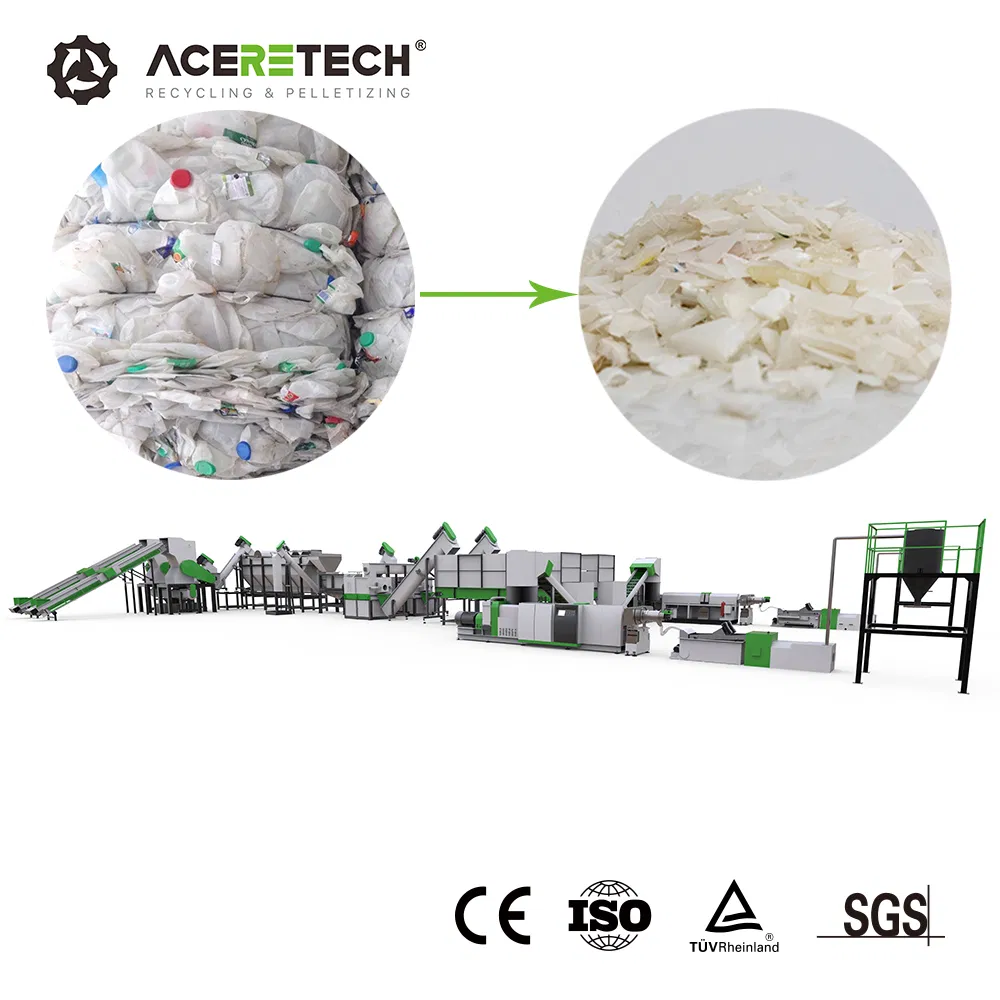

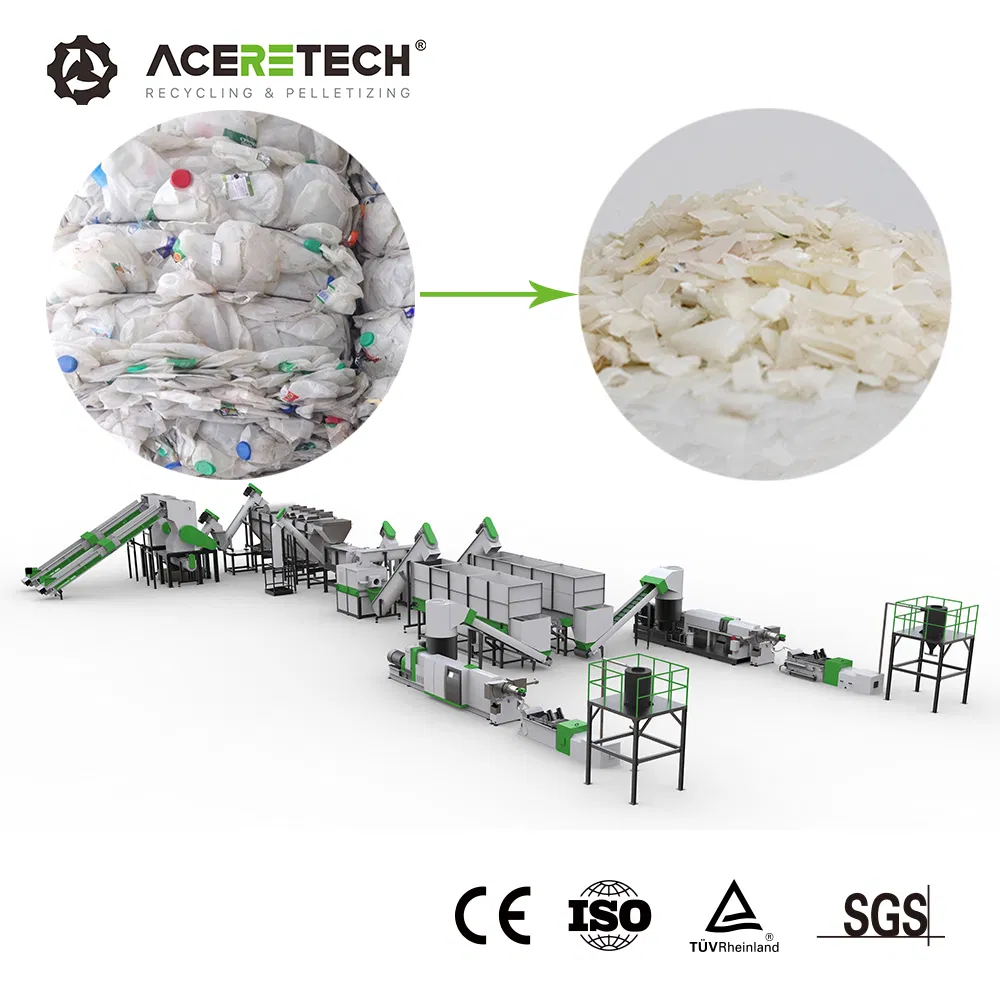

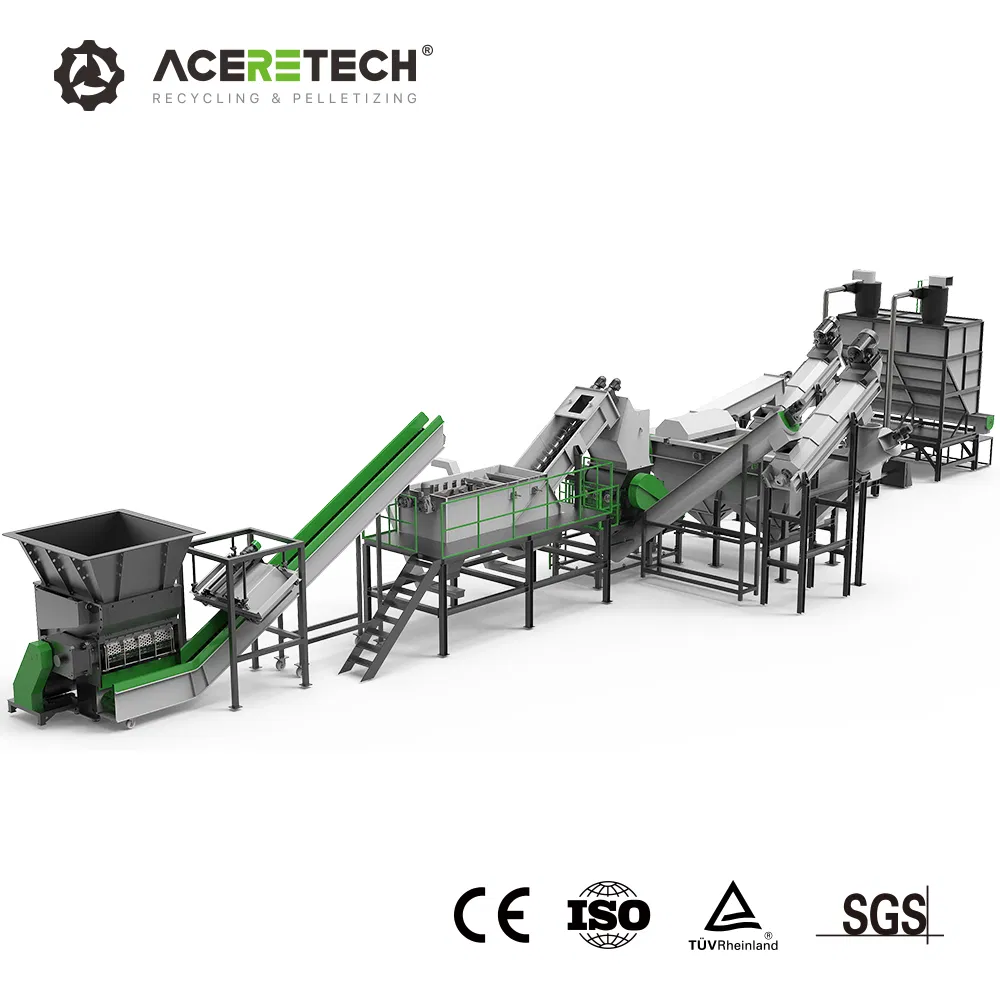

Eco-Friendly Washing Line Plastic Recycling Solution for Sale

Customization: Available
After-sales Service: Local Service Available
Warranty: 2 Years

Product Description

📋 Basic Information
Model NO.
AWS-HDPE
Material Processed
Post-Consumer/Industry Plastic Waste
Plastic Type
PE/PP/LDPE/LLDPE
Automation
Full Automation
Control System
P.L.C Control / Computerized
Certification
ISO9001:2008, CE
Capacity
300-800kg/H
Transport Package
Wooden Pallet
⚙️ Product Description

With years of technology modification and process experience, we offer a variety of solutions for recycling PP PE scraps (LDPE/LLDPE film, PP woven bags, PP non-woven, PE bags, milk bottles, cosmetic containers, vegetable and fruit boxes). Featuring an advanced modular design, we can freely combine standard modules to provide specialized solutions.

Our cleaning line technology is continuously optimized to adapt to different material characteristics, including blow molding packaging (bottles/boxes/cups) and injection waste recycling. The system integrates sorting, size reduction, metal removal, cold/hot washing, high-efficiency friction washing, and drying modules.

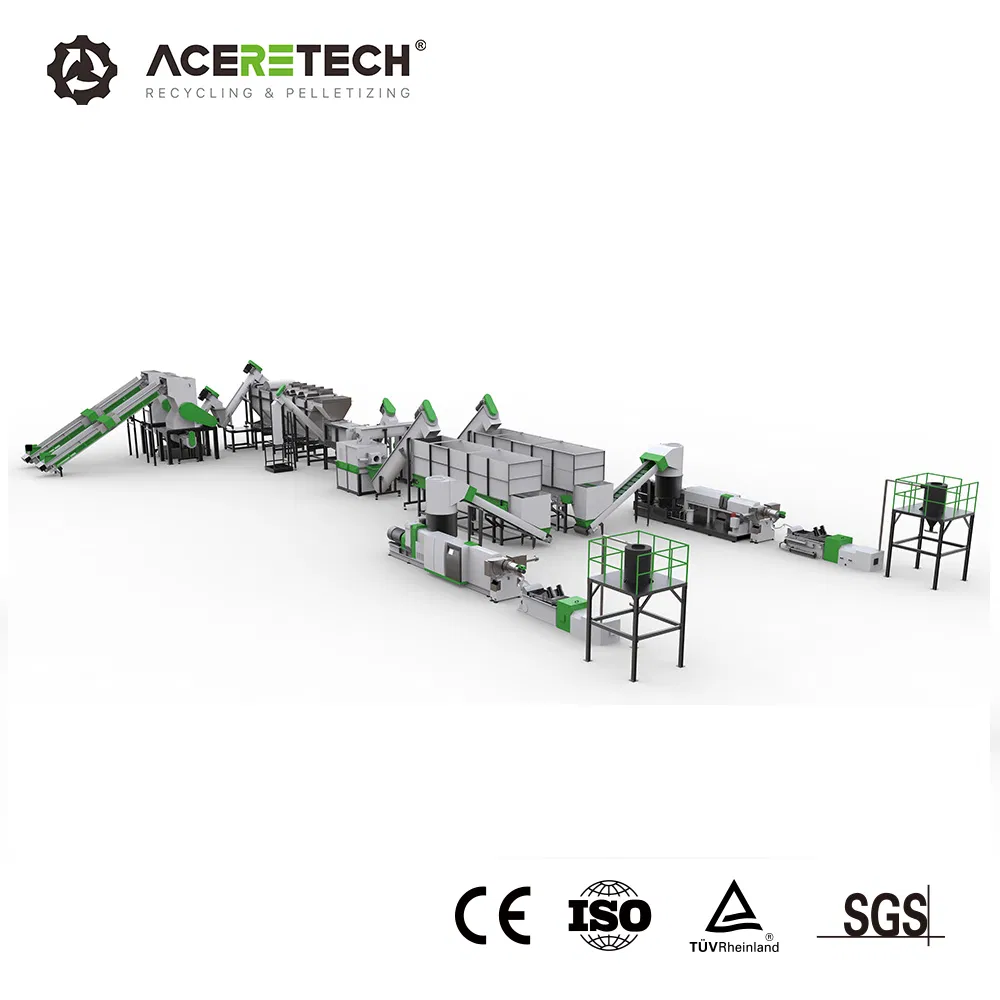

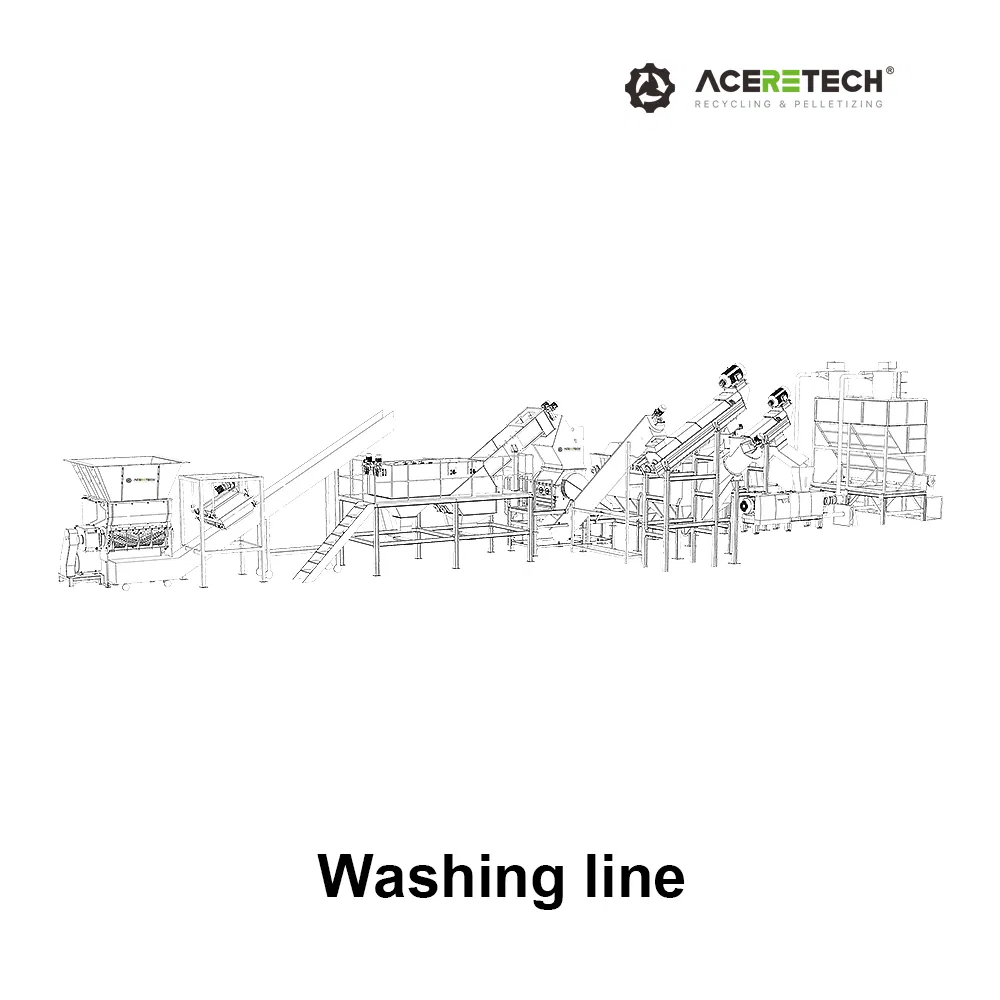

Main components of the washing line:

  • Input Belt conveyor & Magnetic separation belt

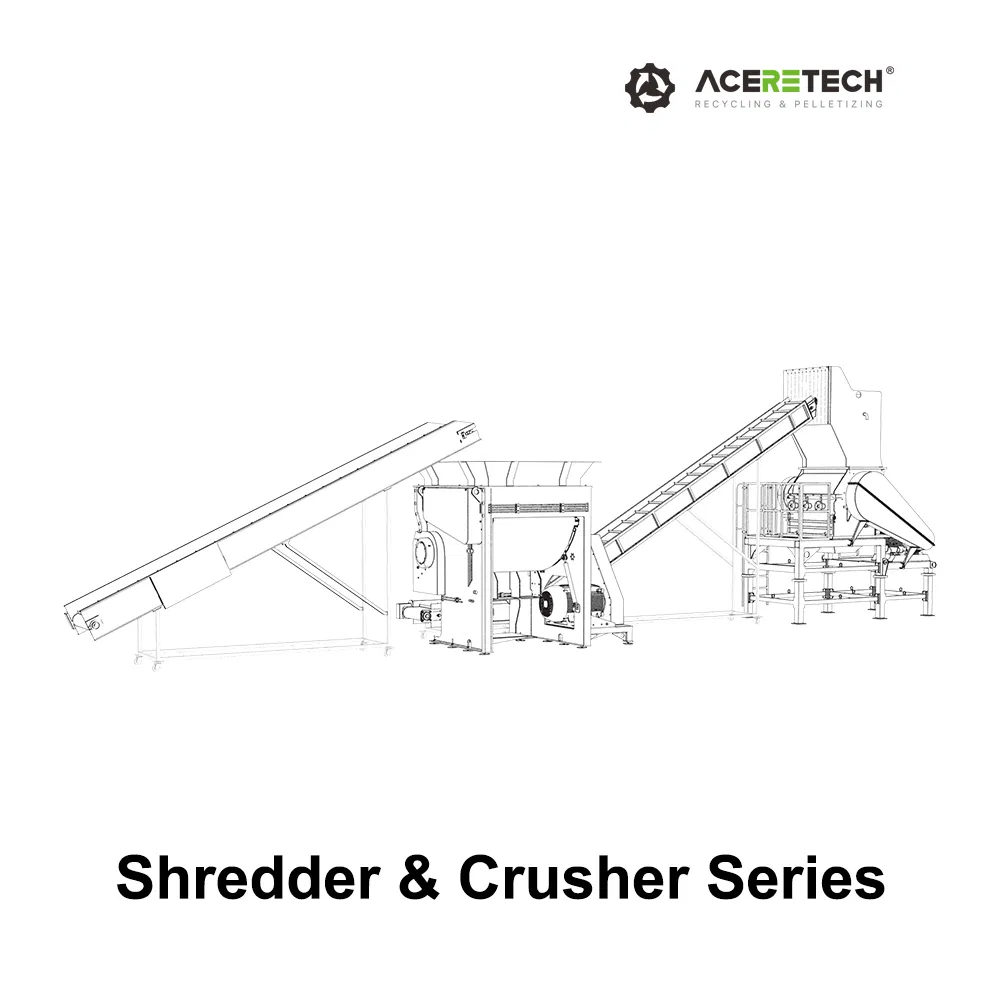

  • Shredder & Heavy-duty Crusher
  • Pre-washer machine
  • Friction washer & Floating separation tank
  • Drying system (Squeezer, Centrifugal dryer, Pipeline dryer)
  • Storage silo & Electrical control cabinet
📊 Technical Parameters
Model Capacity Motor Power Footprint
AWS-HDPE101000kg/h150KW150m²
AWS-HDPE202000kg/h190KW260m²
AWS-HDPE303000kg/h250KW380m²
AWS-HDPE454000kg/h400KW450m²
Unit Energy Consumption (per ton)
Electricity50-80KW
Water0.8-1.5T
Compressed Air0.5-1m³
Steam (optional)0-100KG
🔍 Product Details

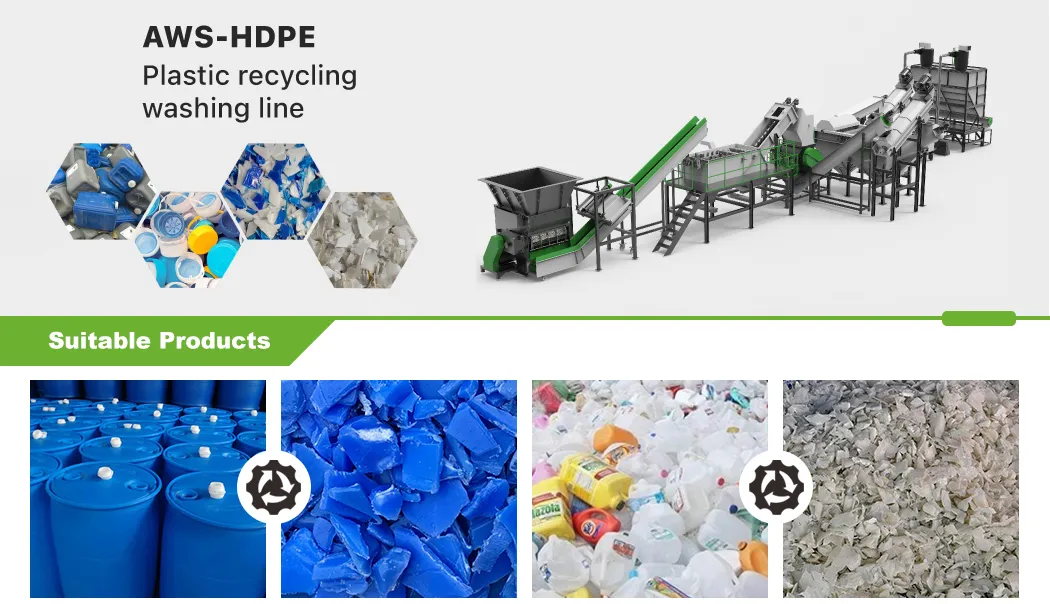

Washing Line Solution

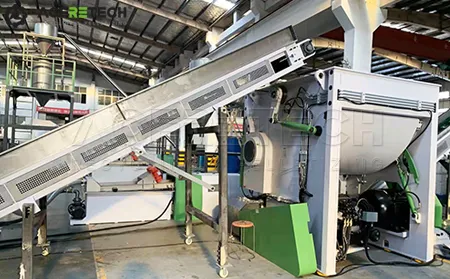

Input Belt Conveyor
Input Belt Conveyor

Heavy duty version with load-related controlling to avoid shredder overfeeding. Optional metal detector protects the shredder from contaminants. Speed controlled by inverter.

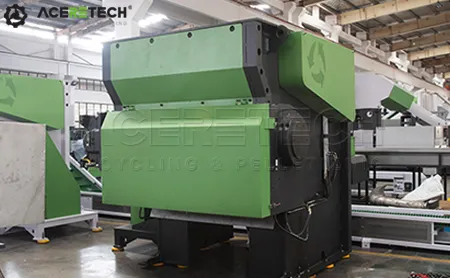

Industrial Shredder

Built-in hydraulic ram with variable movement speeds. 35% more space inside the cutting chamber. Enclosed design prevents materials from flying out.

Shredder

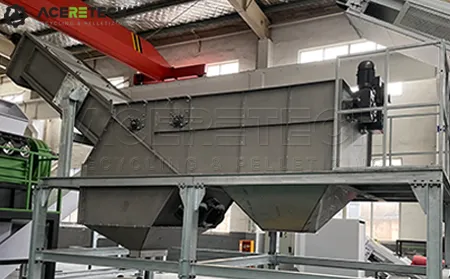

Pre-Washer
Pre-Washer Unit

Stainless steel construction with automatic level control. Uses compressed air injection for enhanced cleaning. Designed for water and energy saving.

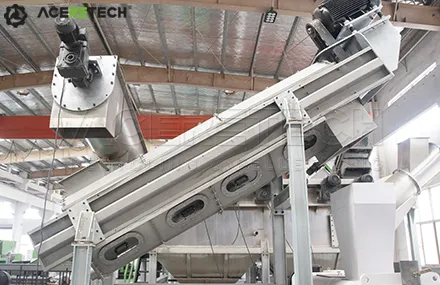

Friction Washer

High-speed rotor unit removes most contaminants. Features stainless steel screen (3mm holes) and oversized outside mounted bearings for durability.

Friction Washer

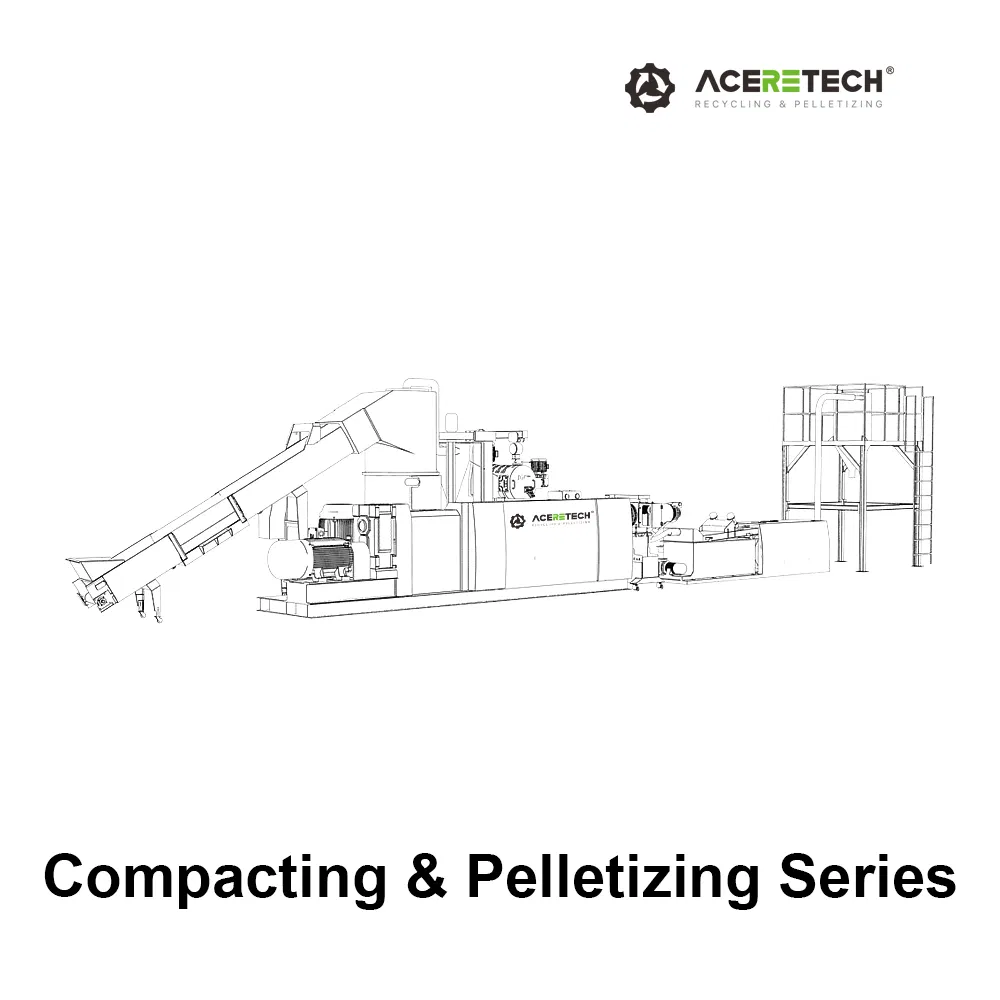

Recycling Machine 1
Recycling Machine 2
Recycling Machine 3
🏭 Manufacturing Excellence
Factory View 1
Factory View 2
Factory View 3
Factory View 4
❓ Frequently Asked Questions
What types of plastic can this washing line process?
The system is designed for PP/PE scraps, including LDPE/LLDPE films, PP woven bags, PE bags, milk bottles, cosmetic containers, and injection waste materials.
How is the quality of the final recycled flakes ensured?
We use a multi-stage process including shredding, metal separation, hot/cold washing, and high-speed friction washing to remove oil, glue, paper, and other contaminants efficiently.
What is the moisture content after the drying process?
For soft materials like film, moisture is controlled within 5-8% using a squeezer. For rigid plastics, a centrifugal dryer and pipeline system reduce moisture to less than 1%.
Do you provide after-sales installation and training?
Yes, we can arrange engineers to visit your facility for installation, commissioning, and staff training. We also provide online support and free spare parts as per the agreement.
How do you test the equipment before shipment?
Every complete production line is connected and run for at least 12 hours in our factory to ensure stable operation and component accuracy before packaging for export.
