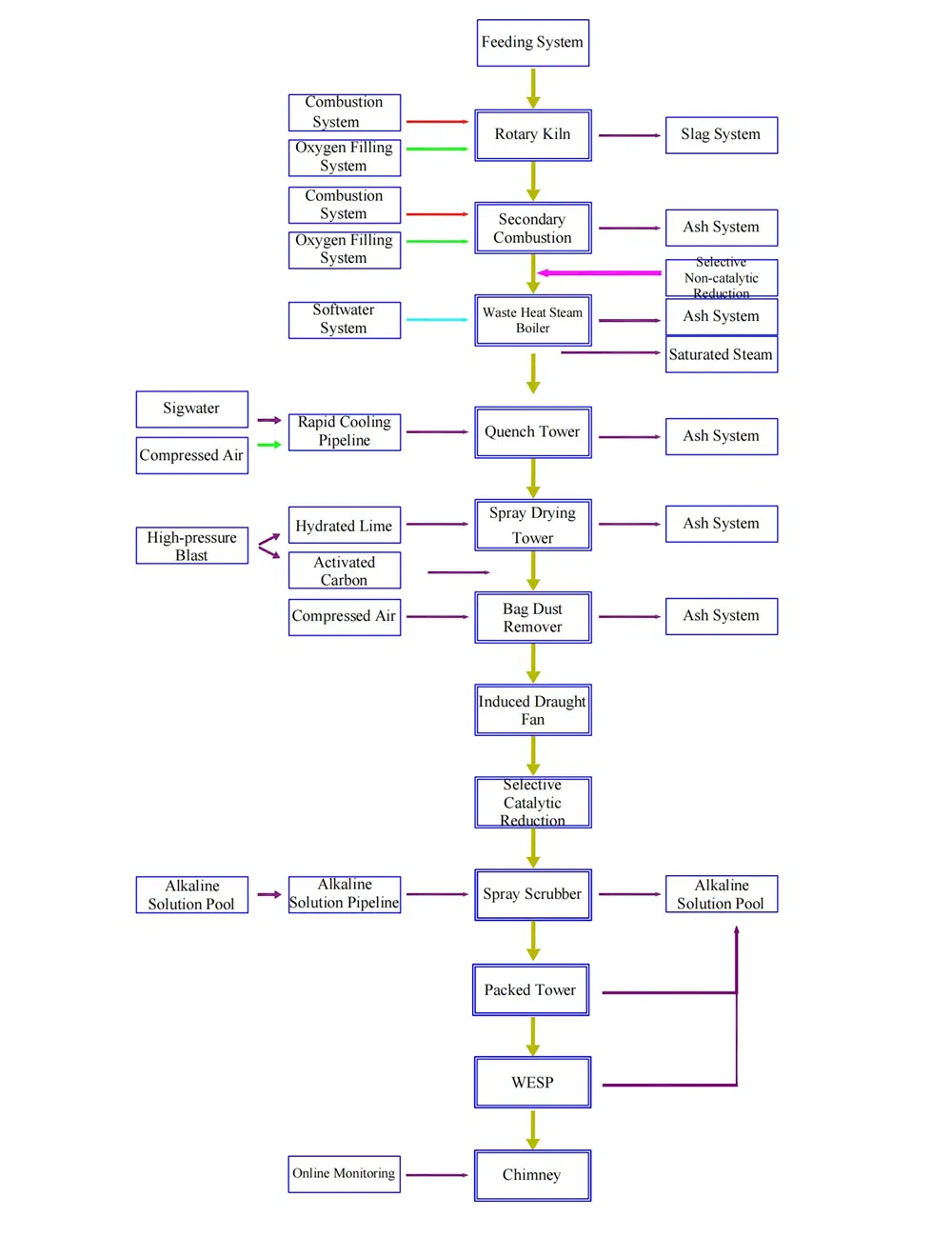

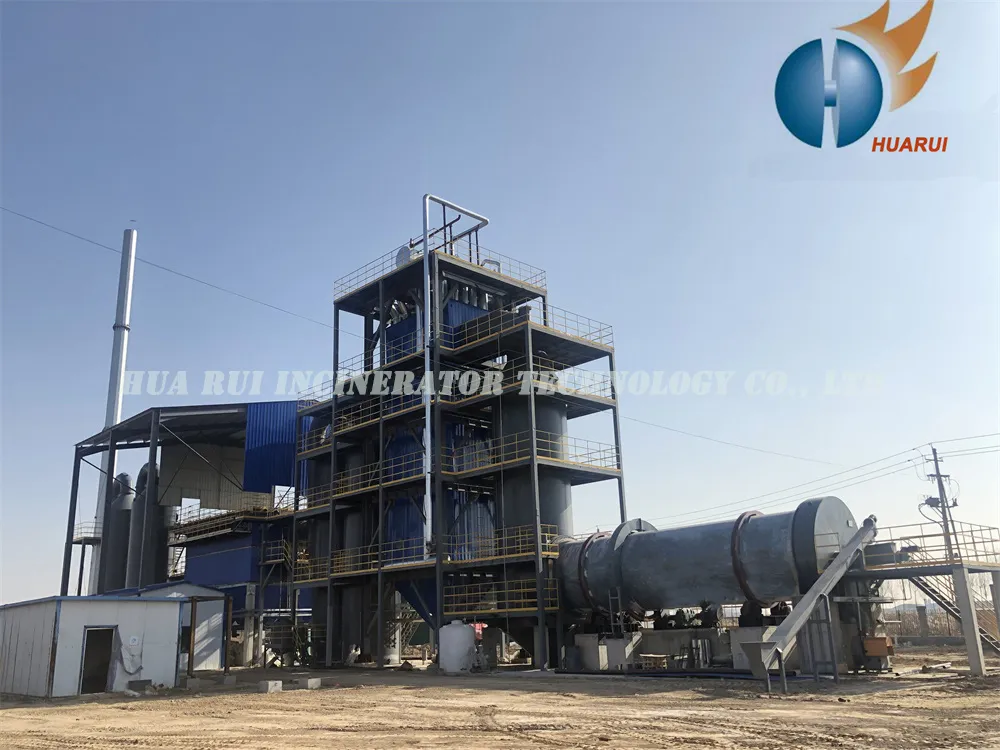

The light diesel oil delivery to the burner through the oil pipeline, the automatic ignition system make the furnace temperature rising slowly. When the temperature reaches set temperature, the waste conveying system sends smashed particles into the combustion chamber via a high-pressure fan. According to the 3T principle (temperature, time, turbine flow), waste undergoes oxidation, pyrolysis, and combustion.

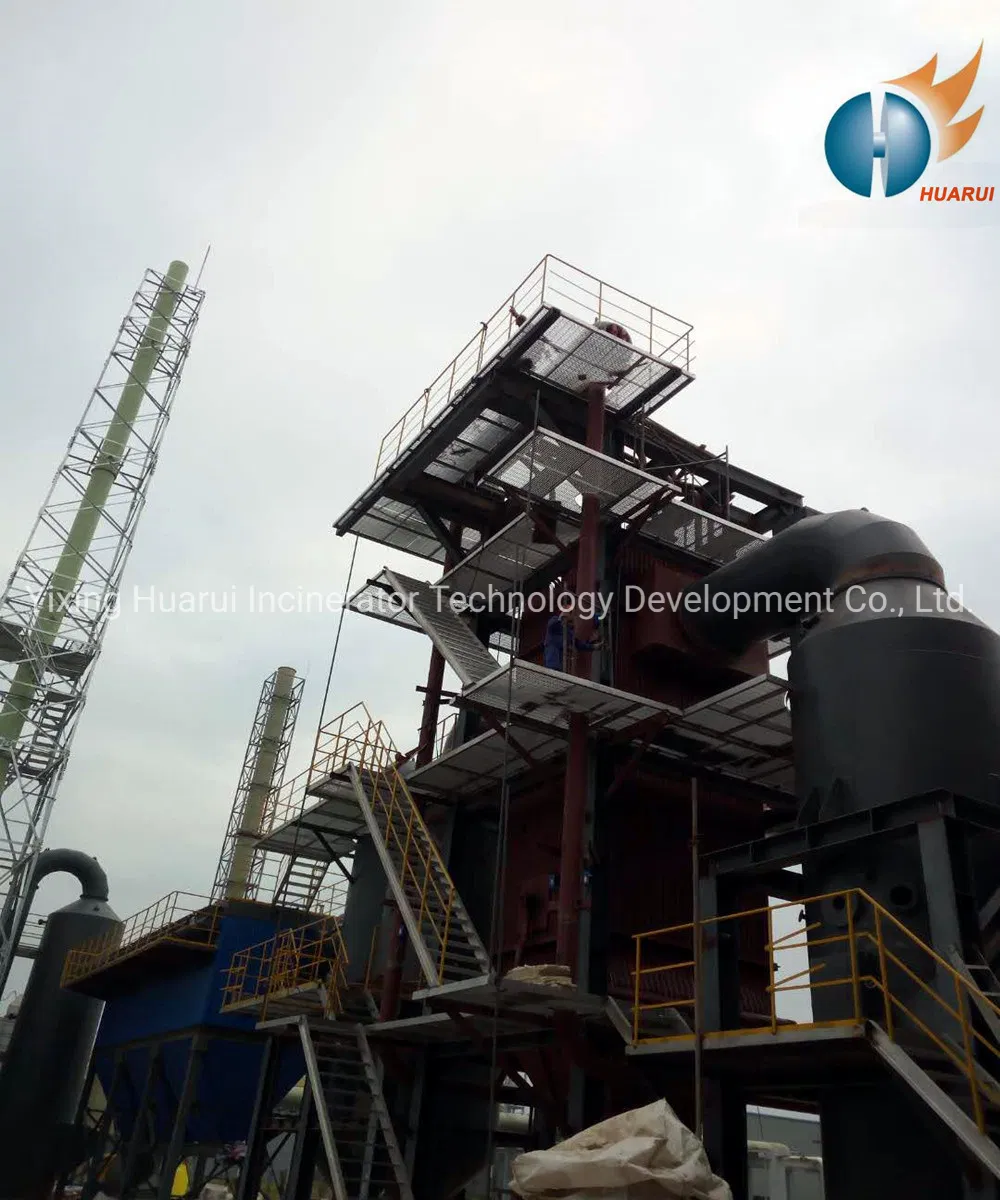

Tail gas is burned again in the secondary combustion chamber with high-temperature oxidation. This chamber features a multi-hull type with three gravity dust collectors. Flue gas then passes through a waste heat boiler for cooling and steam recycling, followed by an air heat exchanger and dust collectors to remove tiny particles and recycle metal oxides. Finally, the standard gas is discharged through the chimney via an exhaust fan.

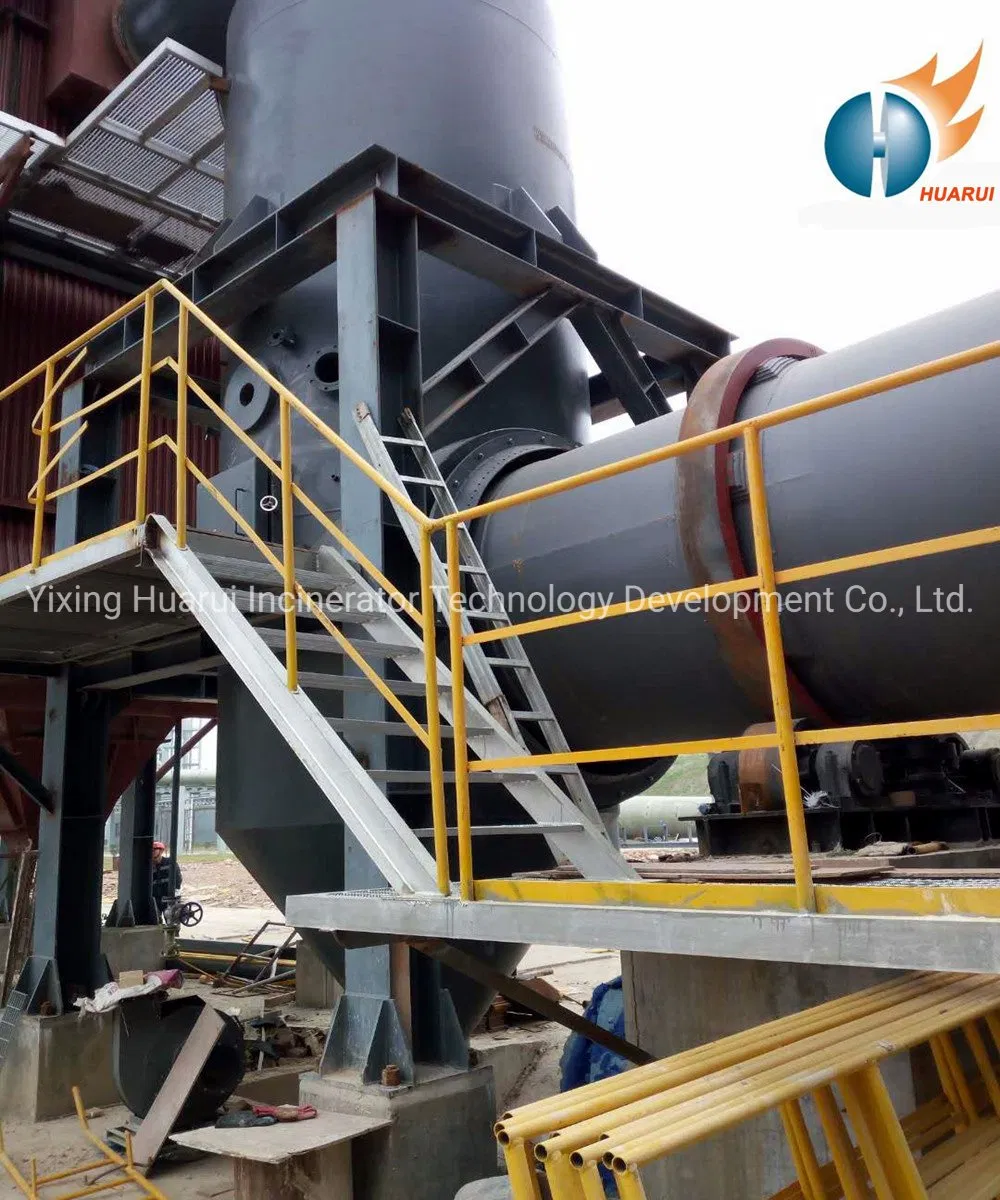

Crusher, frequency conversion feeding motor, high pressure conveying fan, rotary kiln, driving device, supporting device, secondary chamber, waste heat boiler, air heat exchanger, multi-pipe dust collector, spray tower, exhaust fan, chimney, diesel pipeline system, ignition and combustion system, automatic temperature control, and electric control system.
Established in 2007, the company is a high-tech enterprise recognized by the state, holding qualifications for professional contracting of environmental protection engineering and ISO9001:2015 certification. Specializing in liquid, gas, and solid waste incinerators, the facility provides solutions for chemical, pharmaceutical, and medical industries.
The main furnace types include rotary kilns, solid incinerators, liquid incinerators, exhaust gas direct combustion furnaces, RTO regenerative incinerators, and medical waste incinerators. We offer one-stop services including feasibility studies, design, manufacturing, installation, and after-sales tracking.
