Product Description

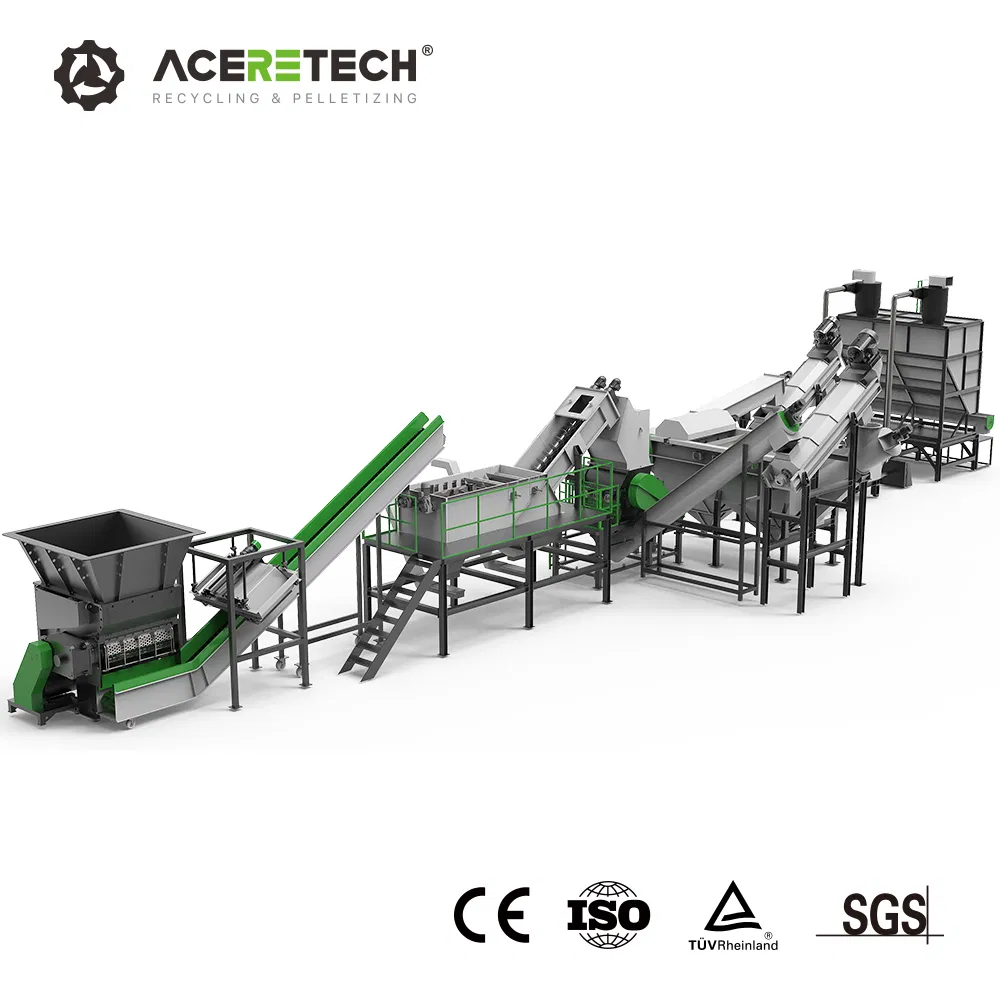

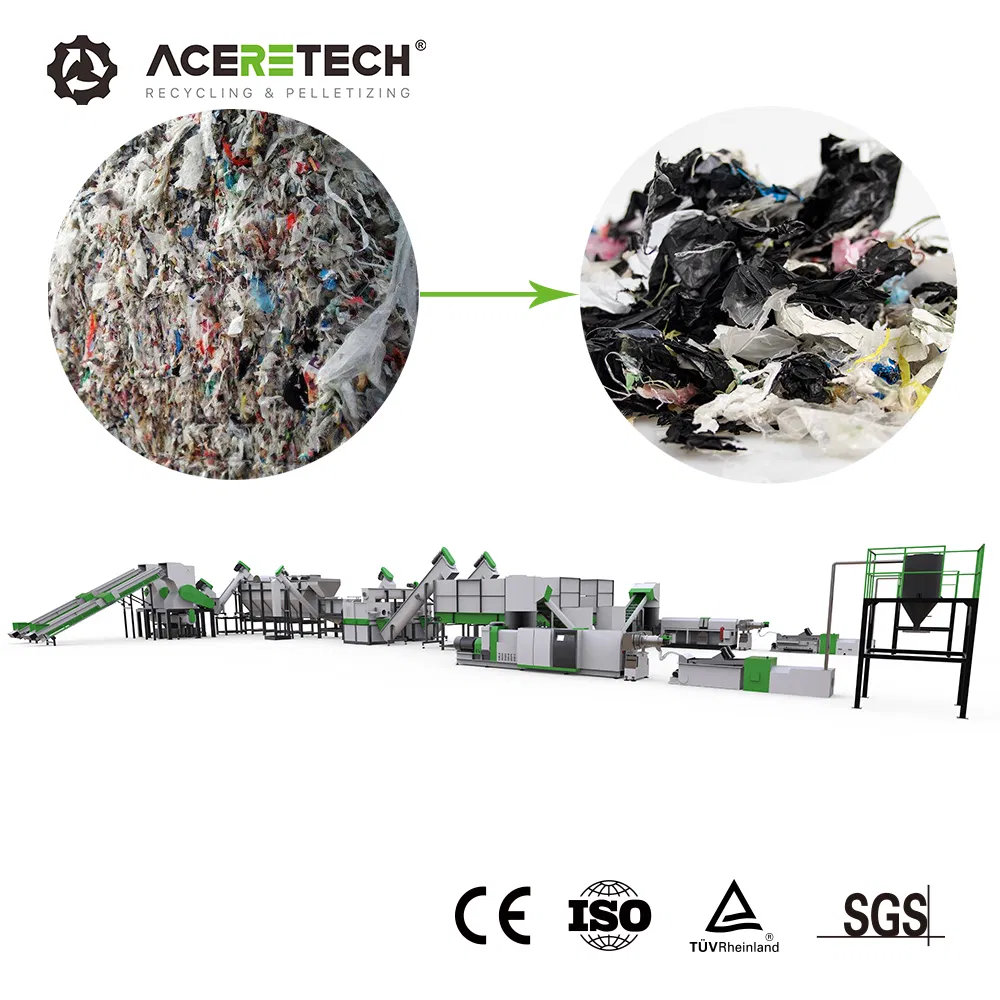

With years of technology modification and process experience, we offer a variety of solutions for recycling PP PE scraps including LDPE/LLDPE film, PP woven bags, non-woven materials, milk bottles, and cosmetic containers. Our advanced modular design allows for specialized combinations to meet specific customer requirements.

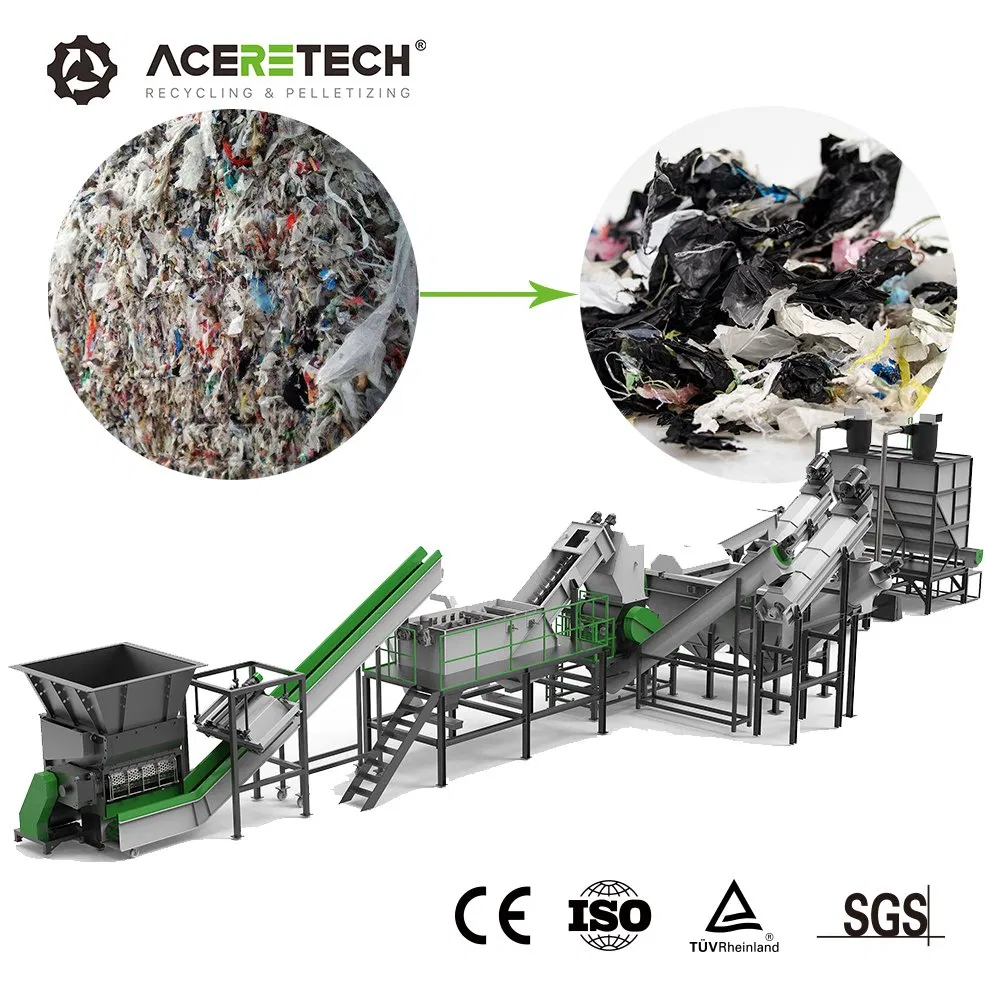

The system integrates European and Chinese cleaning line technologies, optimized to handle various urban and industrial waste compositions. It covers sorting, size reduction, metal removal, cold/hot washing, high-efficiency friction washing, and drying modules.
| Device Parameters |
| Size/Model |
Capacity |
Motor Power |
Footprint |
| AWS PP BAGS 05 |
500kg/h |
560KW |
150m² |
| AWS PP BAGS 10 |
1000kg/h |
680KW |
300m² |
| AWS PP BAGS 20 |
2000kg/h |
750KW |
450m² |
| Unit Energy Consumption (Per Ton) |
| Electricity |
65-85KW |
| Water |
4-6.5T |
| Detergent (Optional) |
2-4KG |
⚙️
Product Details

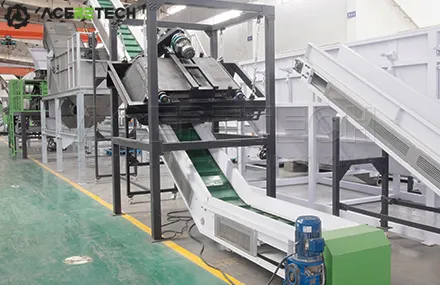

Belt Conveyor
Feeding conveyor with load-related controlling device to avoid overfeeding. Equipped with pull switches and optional metal detectors to protect the shredder.

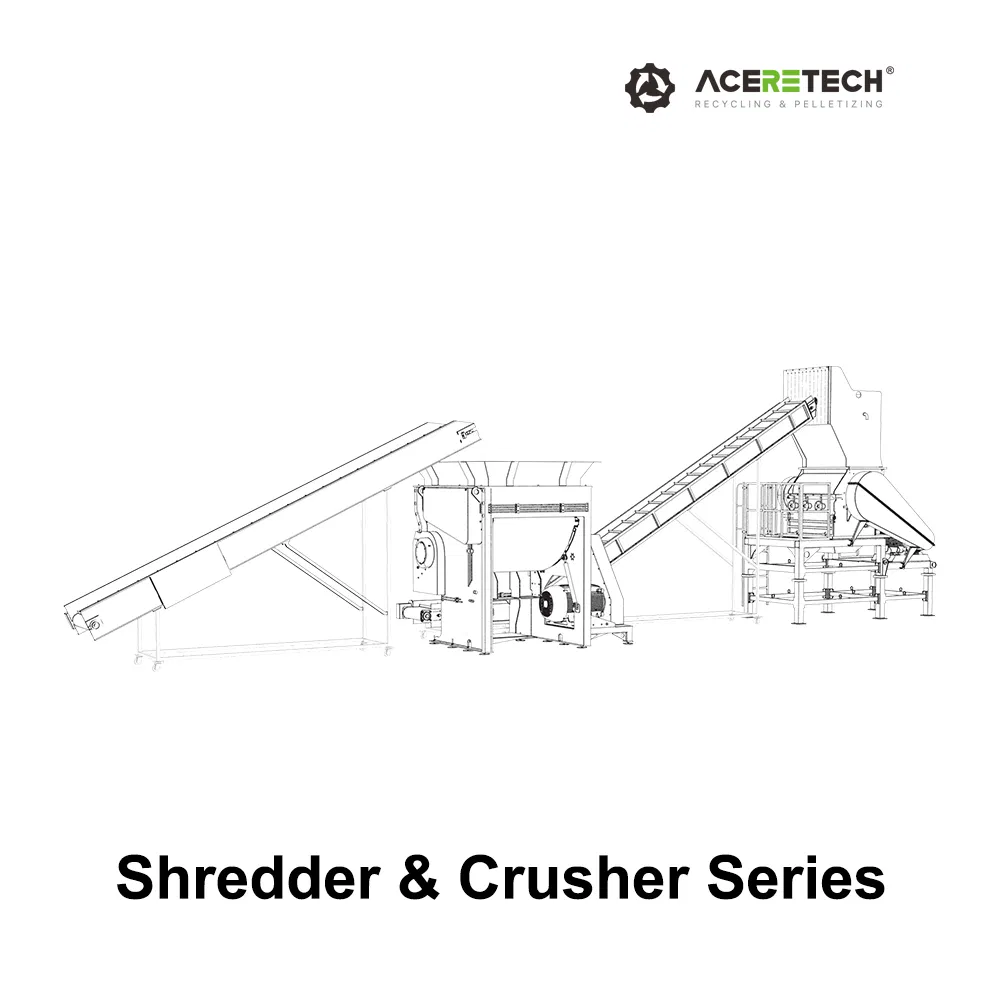

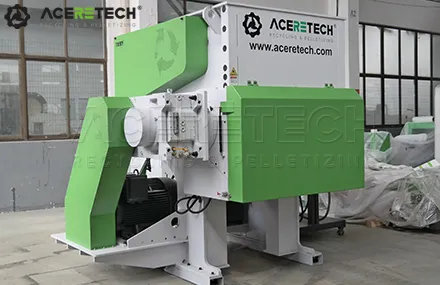

Shredder
Features 35% more space inside the cutting chamber with a built-in hydraulic ram. Variable fast movement ensures efficient size reduction while occupying less space.

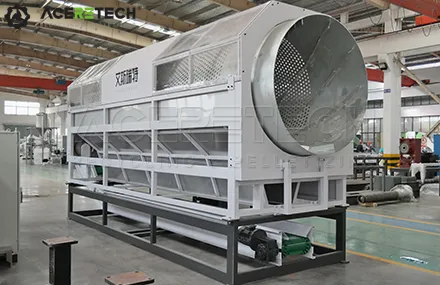

Trommel
Effectively removes stones, dust, loose caps, and small metallic contaminants from the material stream.
Prewasher
Stainless steel separation tank with motorized valves and automatic level control. Uses compressor blowers to inject air for enhanced cleaning.

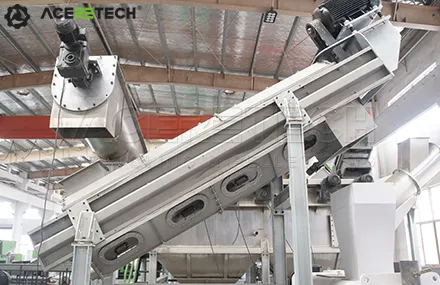

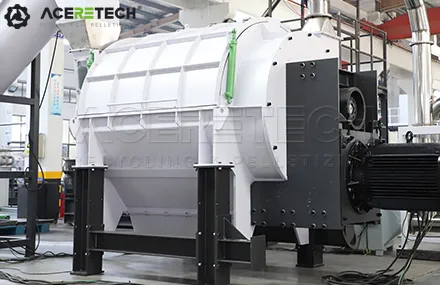

Friction Washer
Stainless steel housing with a high-speed rotor. Designed with outside mounted bearings and a 3mm hole screen for efficient water discharge.
Separation Tank & Control
Separates contaminants based on gravity. Features multi-chamber version for higher separation efficiency and PLC-controlled force ventilated motors.
❓
FAQ
Are you the original manufacturer for this recycling line?
Yes, we are the original manufacturer with our own R&D and manufacturing team. You are welcome to visit our factory to see the production process first-hand.
How do you ensure the quality of the machinery?
We use professional processing equipment for each part. Every component undergoes strict inspection, and assembly is managed by masters with over 15 years of experience. Finally, we run the full line for at least 12 hours before shipping.
What kind of after-sales service do you provide?
We provide debugging videos before shipment, standard export packaging, and can arrange engineers for on-site installation and training. An online support team is also available to follow up on your project.
What materials can this washing line handle?

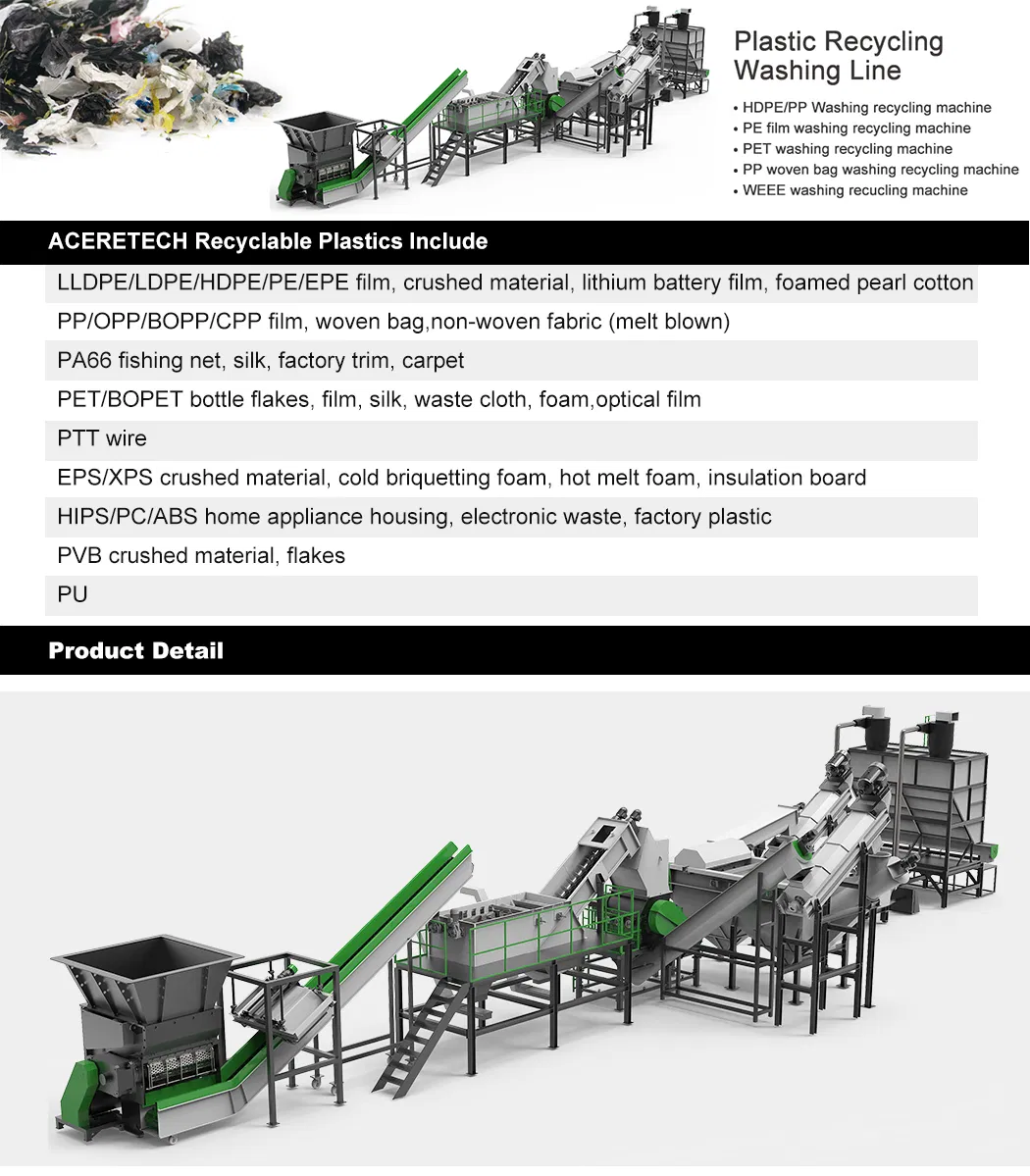

The system is designed for HDPE, PP, PS, ABS, PC, and PET materials, including film, woven bags, milk bottles, and injection waste.
Is the machinery automated and what control system is used?
Yes, the line is fully automated and utilizes a centralized PLC control system for stable and easy operation.
Do you provide customized solutions?
Absolutely. Our modular design allows us to freely combine standard modules to provide specialized solutions based on your specific raw material characteristics.
