Advanced Eco-Friendly Waste Management Kiln for Efficient Disposal

After-sales Service:	1 Year
Warranty:	1 Year
Condition:	New

Basic Specifications

Model NO.

HR-X

Certification

ISO

Automation

Automatic

Treatment

Burning

Fuel

Diesel Oil, Natural Gas, Lps

Service Life

10-15 Years

R&D Personnel

More Than 20 People

HS Code

8417809090

Capacity

300 Sets/Year

Package Size

4000cm * 3000cm * 2000cm

Scope of Application

Biochemical oil sludge, oil refining sludge, various distillation residues, salt residue, etc.
Central treatment for industrial waste.
Central treatment for medical waste.

Key Characteristics

Automatically fill the material and automatically output the ash.
Environmentally friendly: Without any smoke, smell or second public pollution.
Advanced revolving type incinerator body for superior burning effects.
High efficiency: Heat alkali burning rate is over 90% with minimal ash.
Versatile: Handles garbage with high water content and low water content simultaneously.
Safe Operation: Advanced automatic control technology for low operating costs.

Hazardous waste handling capacity: 50-5000kg/h

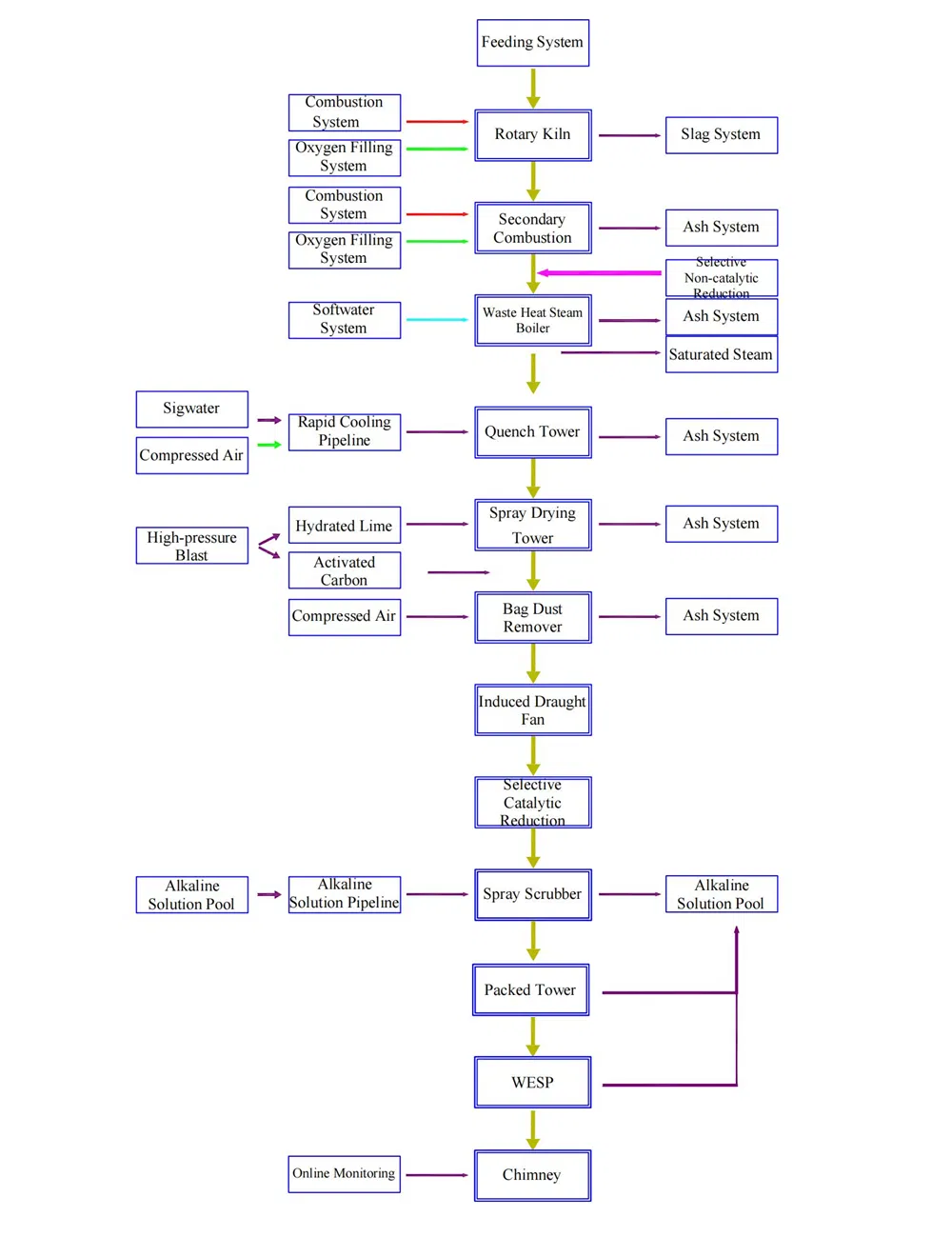

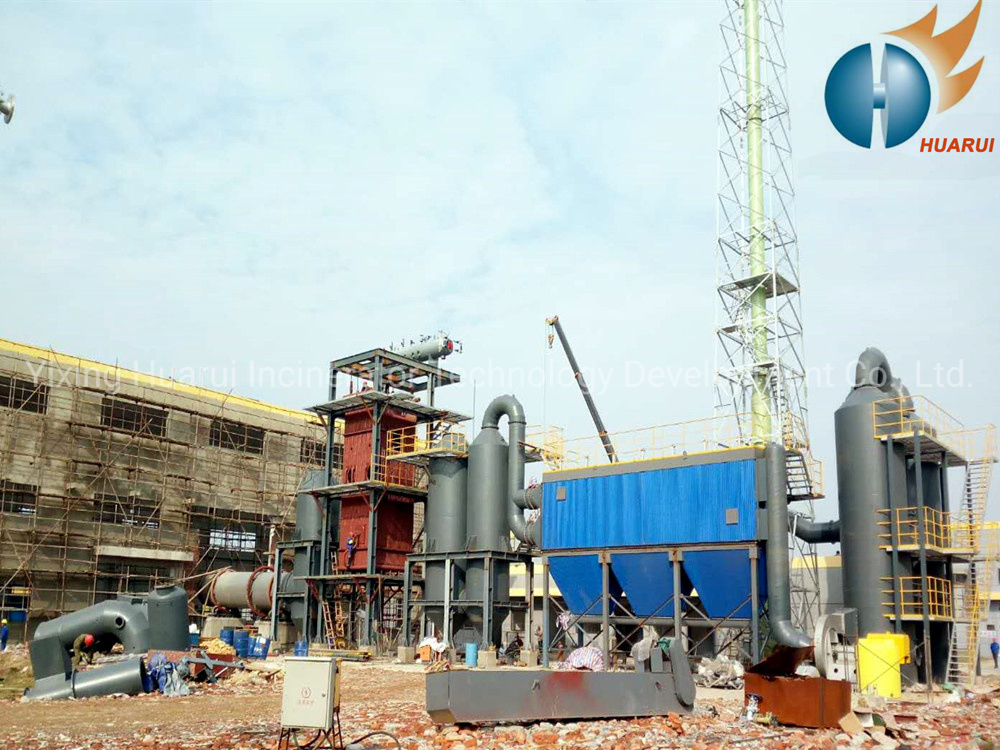

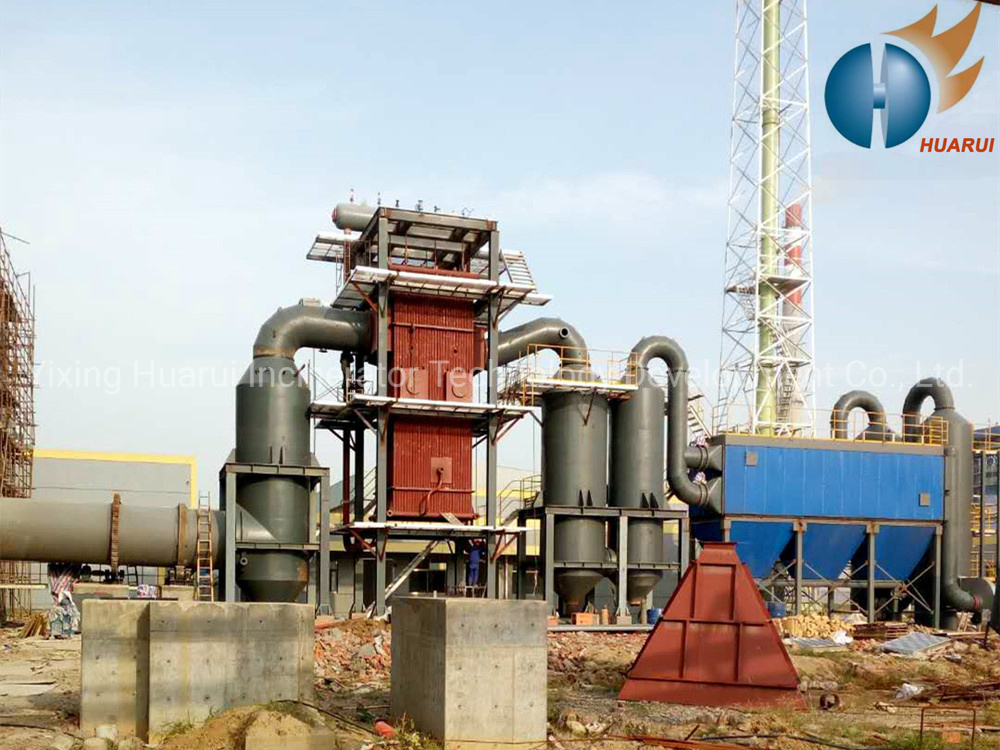

Process Flow Description

The system utilizes an automatic ignition system and high-pressure conveying fans to send waste into the combustion chamber. Based on the 3T principle (Temperature, Time, Turbine flow), waste undergoes oxidative pyrolysis and combustion. Tail gas is treated in a multi-hull secondary combustion chamber with gravity dust collectors.

High-temperature flue gas is processed through a waste heat boiler for steam recycling and metal oxide recovery. After passing through air heat exchangers, dust collectors, and spray washing systems, standard gas is safely discharged through the chimney.

Incinerator Equipment List

Crusher, frequency conversion feeding motor, high pressure conveying fan, rotary kiln, driving device, supporting device, secondary chamber, waste heat boiler, air heat exchanger, multi-pipe dust collector, spray tower, exhaust fan, chimney, diesel pipeline system, diesel ignition and combustion machine system, combustion chamber temperature automatic control system, electric control system, liquid atomizer, and operating platform.
