Advanced Waste Management Technology for Eco-Conscious Disposal Practices

1. Effortless operation with automatic material input and ash output for seamless processing.

2. Eco-friendly, emitting no smoke or odors, with dry, cost-efficient burning and minimal secondary pollution.

3. Innovative revolving incinerator design with multi-phase combustion ensures excellent results.

4. High-efficiency cremation results in minimal ash, with a heat-alkali burn rate exceeding 90%.

5. Continual material loading, efficiently handling varied garbage moisture levels for optimal combustion.

6. Cutting-edge automatic control technology guarantees safe, reliable equipment operation with low costs.

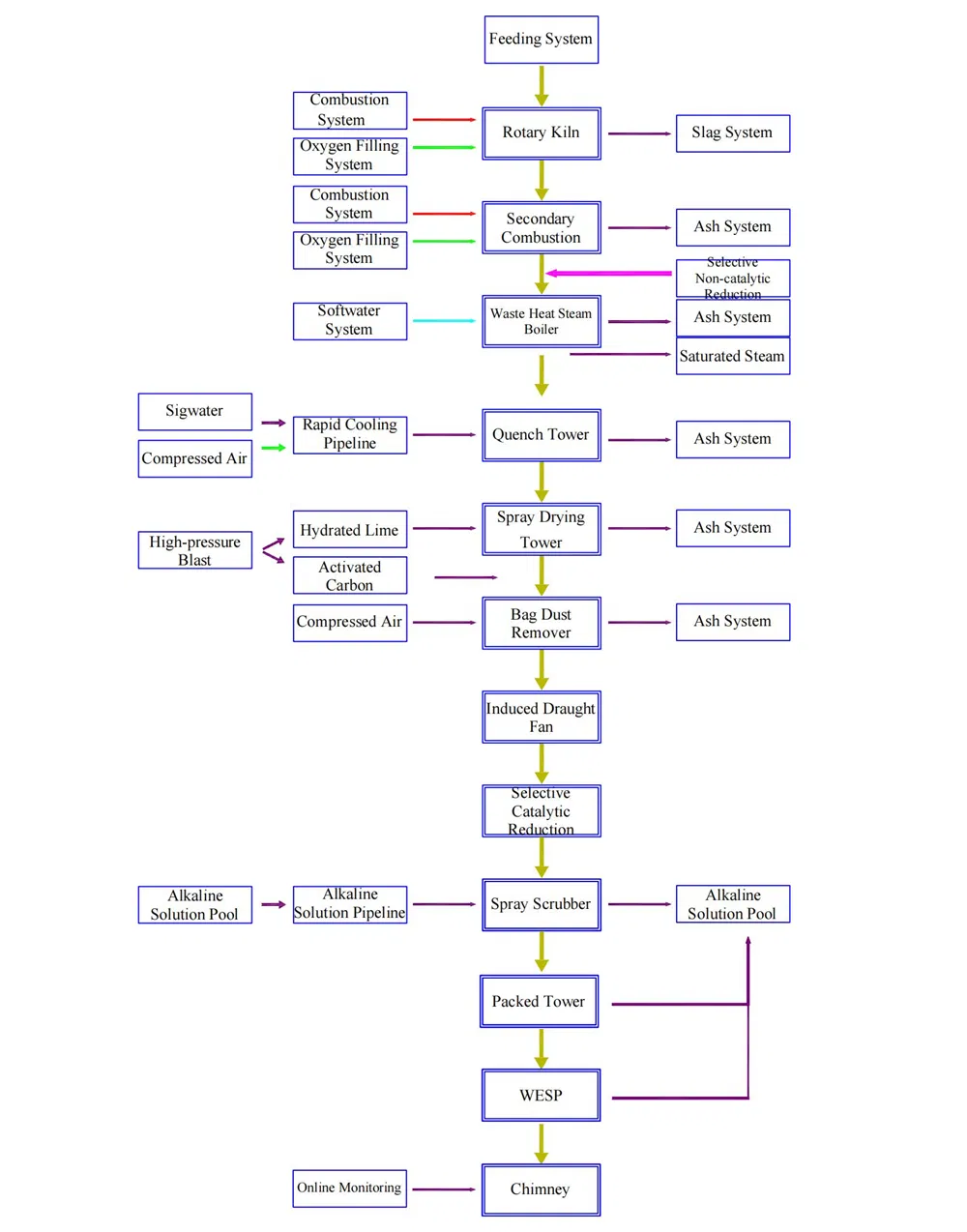

Diesel fuel is delivered through an oil pipeline to the burner. The automatic ignition system gradually elevates furnace temperature, reaching the set point in half an hour. Waste is then conveyed, crushed, and introduced into the combustion chamber via a high-pressure fan. Adhering to the 3T principle (temperature, time, turbulence), waste undergoes oxidation, pyrolysis, and combustion. Post-burning, tail gas undergoes secondary high-temperature oxidation in a multi-hull secondary chamber with three gravity dust collectors. Flue gas is cooled in a waste heat boiler, and gases enter a dust collector for fine particle removal. The spray system completes dust removal, ensuring emissions meet standards before chimney discharge.

Incinerator Device Comprises: Crusher, frequency-conversion feeding motor, high-pressure conveying fan, rotary kiln, drive and support devices, secondary chamber, waste heat boiler, air heat exchanger, multi-pipe dust collector, spray tower, exhaust fan, chimney, and combustion control systems.
