Advanced Bio Waste Gas Incinerator for Sustainable Management

• Industrial mixed exhaust gas, inflammable exhaust gas, and exhaust gas from color paint processes.
• Exhaust gas that remains stable under high temperatures and is difficult to burn, including toxic gases and dangerous explosive gases.

• Multi-grade fire resisting and returning safety devices.
• Advanced explosion controlling system.
• Reliable emergency exhaust device.
• Whirl flux device utilizing precise PC control.
• Thermal energy reclamation capabilities to significantly decrease operational costs.

Waste gas treatment capacity: 100 - 1000 Nm³/h

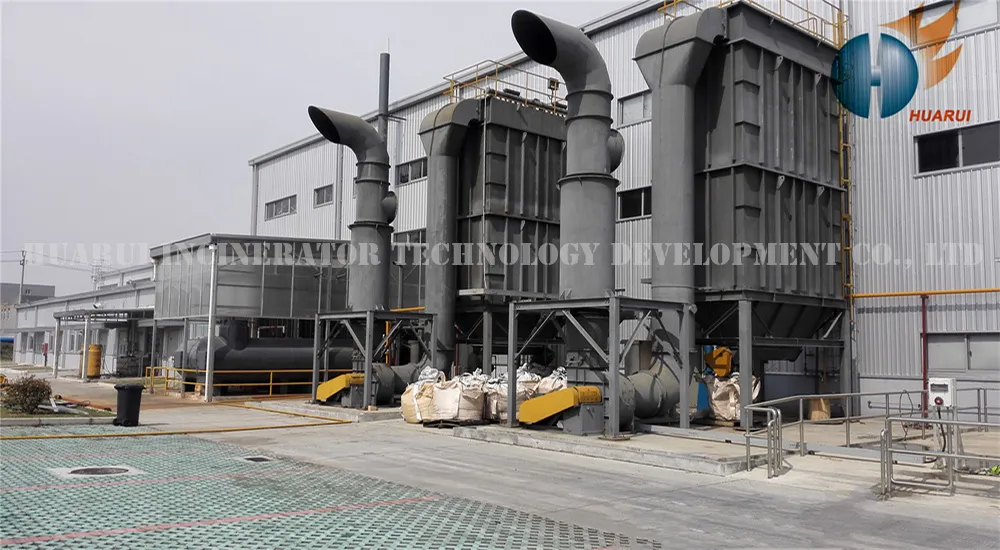

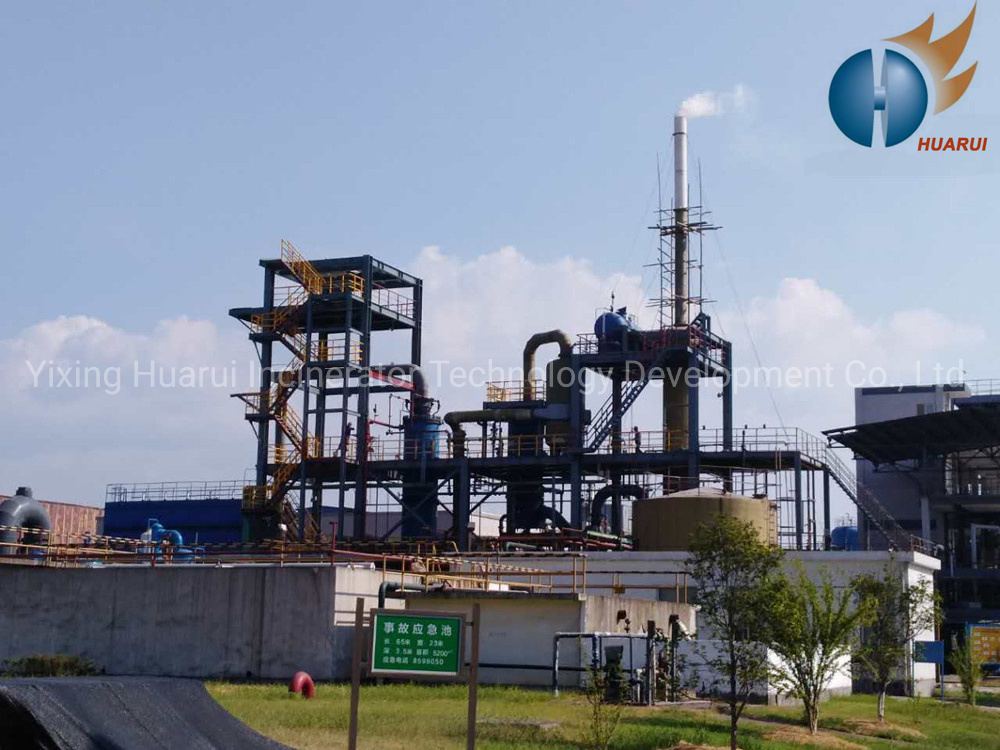

The system consists of a furnace body, gas injector, liquor atomizer, burner, air blower, electric control system, waste gas surge tank, air preheater, waste heat boiler, cooling air valve, cloth bag dust collector, exhaust fan, chimney, fuel supply line and control, waste gas conveying control system, and waste liquid pipeline system.

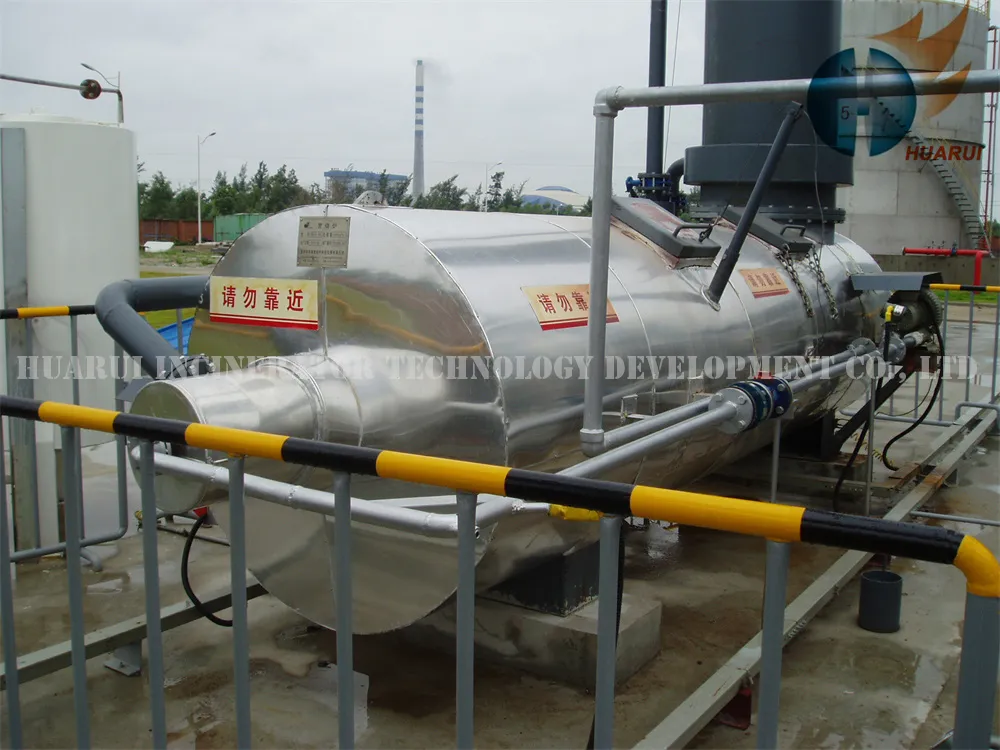

The incinerator features a cylindrical refractory lining. The automatic burner ignition ensures the furnace temperature increases gradually. Once the temperature reaches approximately 800ºC, the gas transmission and waste liquid systems open, introducing materials into the furnace for combustion. An automatic temperature control system maintains optimal combustion conditions to ensure non-toxic, harmless, smokeless, and odorless discharge. High-temperature smoke passes through an air preheater and waste heat boiler to produce steam for factory use. The flue gas is then cooled to below 250ºC before entering the cloth bag dust collector for final treatment.
Note: This equipment is not suitable for burning sulfur, halogen classes, or flame retardant materials where organic concentrations are within explosion limits.
